Design and function of tandem pump - RA4600FBL0060X(46-0060)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tandem pump designations

    Designation plate (Vickers/Luk)

    Fig 1: Identifying Tandem Pump Designation Plate (Vickers/Luk)
    G04686065Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Tandem pump model

    Fig 2: Description Of Tandem Pump Designation Plate Numbers (Vickers/Luk)
    G04686066Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Designation plate (Zahnradfabrik Friedrichshafen)

    Fig 3: Identifying Tandem Pump Designation Plate (Zahnradfabrik Friedrichshafen)
    G04686067Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Tandem pump model

    Fig 4: Description Of Tandem Pump Designation Plate Numbers (Zahnradfabrik Friedrichshafen)
    G04686068Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Drive

    The tandem pump is driven as in the case of the power steering pump via a poly V-belt. An automatic retensioner ensures an even preload on the poly-V belt.

    Fig 5: Identifying Tandem Pump Drive, Line Routing
    G04686069Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    The poly V-belt pulley (48) is secured to the drive shaft flange with three hexagon bolts (48a).

    Fig 6: Identifying Poly V-Belt Pulley (48) And Drive Shaft Flange Bolts (48A)
    G04686070Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

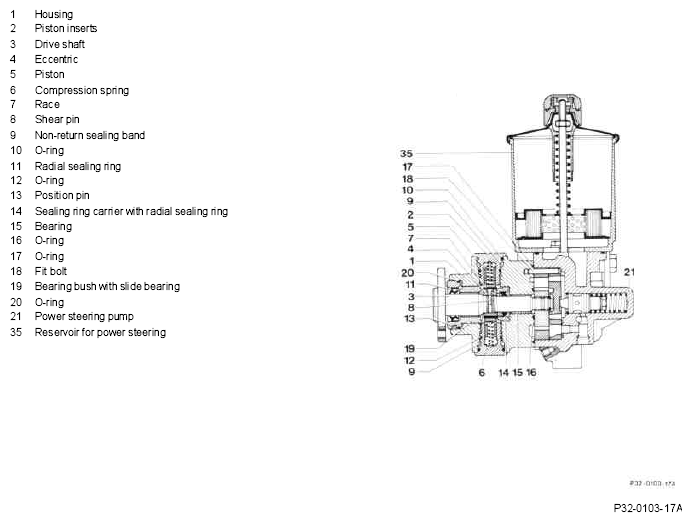

    Fig 7: Identifying Tandem Pump Components
    G04686071Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Both systems are driven by the same drive shaft (3).

    The servo system corresponds to the power steering pump in terms of drive, design and function (vane-type pump).

    The radial piston pump for the level control, ASD, ADS and 4MATIC systems is driven via the eccentric section (4). The piston (5) is shifted into a stroke motion by the eccentric.

    The eccentric (4) of the radial piston pump is connected to the drive shaft (3) via the shear pin (8) which shears in the event of overload. The vane-type pump for the power steering continues to remain operative in this event.

    Two different flow rates are achieved using the minimum of space by means of two independent systems.

    Steering gear oil is used for the servo circuit in the case of power steering; by contrast the radial piston pump works with hydraulic fluid.

    Sealing

    The complete pump assembly is sealed by O-rings.

    Sealing the drive shaft (3) and the separation of both systems is achieved by double-lipped radial sealing rings (11, 14).

    Line routing

    The line routing and location of the servo circuit is the same as for the power steering pump. The radial piston pump is supplied with hydraulic fluid from a separate reservoir (2) via the hose line (A).

    Fig 8: Identifying Reservoir (2) And Hose Line (A)
    G04686072Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    The pressure line (P) supplies the individual systems depending on the vehicle equipment - ASD, ADS, 4MATIC and level control - with a maximum oil pressure up to 150 bar.

    Location M 104

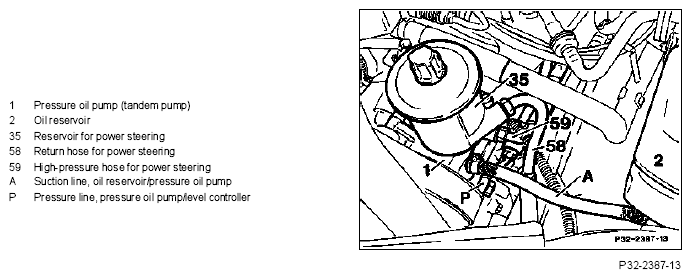

    Fig 9: Identifying Pressure Line, Pressure Oil Pump/Level Controller And Oil Reservoir
    G04686073Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Oil delivery of radial piston pump

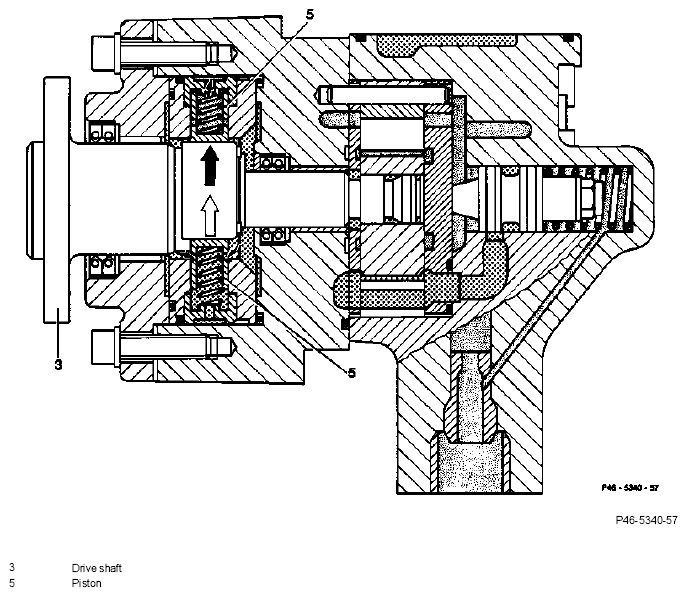

    Fig 10: Identifying Oil Delivery Of Radial Piston Pump
    G04686074Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    The spring-loaded pistons (5) more axially due to rotation of the eccentric drive shaft (3). With the travel of the piston to the lower dead-center position, a vacuum is created due to the increase in volume in the piston chamber. This causes the oil to flow in through the transverse bores in the piston which connects the cylinder chamber to the inlet side shortly before the lower dead-center position. On the power stroke the full cylinder chamber is sealed due to the overlapping of the bores shortly after the lower dead-center position.

    Oil is pushed out to the pressure side via spring loaded exhaust valves.

    Constant oil flow at variable speed is achieved by suction control. As speed increases, the opening time of the transverse bores in the piston is reduced so that the suction vacuum is no longer adequate to completely fill the cylinder chamber in the short time interval. The decreasing partial filling has the effect of keeping the flow rate as well as the required power almost constant as speed increases.

  4. Pressure limitation of radial piston pump

    The pressure of the radial piston pump is limited by pressure relief valves in the control units of the connected systems (ASD, ADS, 4MATIC and level control). A performance and pressure test must not therefore be performed directly on the radial piston pump section of the tandem pump.
