Retightening mounting bolts for steering - wh4671pkw0000x(4671)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 107 from 8/85; 123; 124, 129 up to 6/93; 126 from 9/85; 201 from 1/85

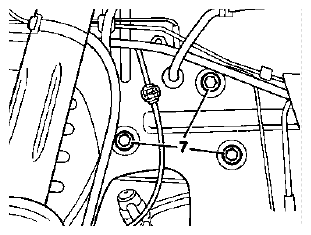

Fig 1: Identifying Steering Gear Mounting Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Mounting bolts (7) for steering gear	re-tighten on frame floor, tightening torque 70-80 Nm.
	Torque wrench 001 589 66 21 00.

Special tool

Fig 2: Identifying Special Tool

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
