Servicing wiring harness - AR15.18-P-0500A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 124, 126, 129, 140, 163, 168, 170, 201, 202, 208, 210, 215, 220

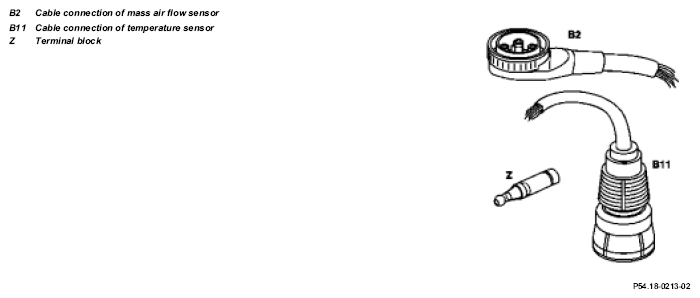

Fig 1: Identifying Terminal Block And Cable Connection Of Mass Air Flow Sensor And Temperature Sensor
If a cable break or similar damage exists in the area of the plug connection of the mass air flow sensor (B2) or temperature sensor (B11), it is possible to repair the wiring harness in order to avoid costly replacement of a wiring harness.
Modification notes
| 27.9.99 | Supersedes SI 54/76 dated 23.1.96 | Remove SI 54/76 from your file. |
| Removing and installing | |||
|---|---|---|---|
| 1 | Remove air cleaner, install. | ||
| 2 | Expose wiring harness to mass air flow sensor or temperature sensor. | ||
| 3 | Unplug socket from mass air flow sensor or temperature sensor. | ||
| 4 | Plug in repair socket together with cables at mass air flow sensor or temperature sensor and insert into cable duct. | ||
| 5 | Repair wiring harness using end soldering sleeves (Z). | AR54.18-P-0100-02A | |
| 6 | Insert cables into the cable duct. | ||
| 7 | Connect HHT, read faults and erase | ||
| 8 | Install in the reverse order |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| 140 540 00 36 | Repair kit socket (B2)1 1) Consisting of repair socket (B2) and 5 cable connectors |
acc. to condition |
| 140 540 00 81 | Repair socket (B2) | acc. to condition |
| 202 540 01 81 | Repair socket (B11) 3-pin | acc. to condition |
| 126 540 30 81 | Repair socket (B11) 4-pin | acc. to condition |
| 001 546 99 41 | Cable connector | acc. to condition |
| 006 989 84 85 | Fabric tape | acc. to condition |
