Replacement of the spark plugs - ra15lh1041031x(1031)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Operation No. of operation texts and operation values or standard texts and flat rates 15-1031

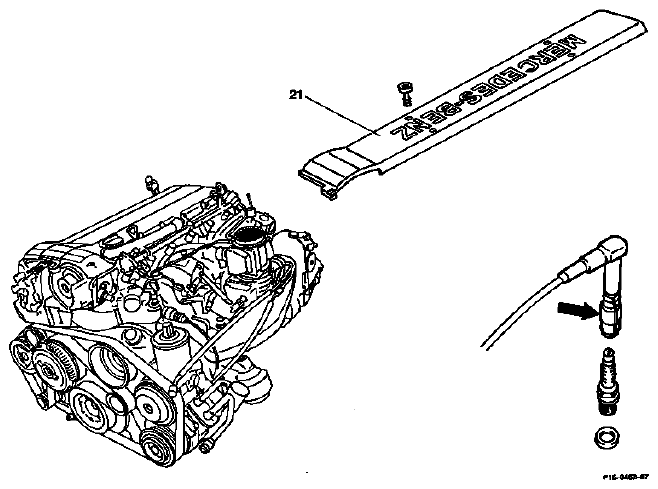

| Cover (21) | remove, fit on. |
| Spark plug connector (arrow) | slacken by turning to right and left, pull off, fit on. Use approved special tool 103 589 00 37 00. Blow out recesses with compressed air. |
| Ignition cables | clean. |
| Spark plugs | unscrew, screw in; renew if necessary. Tightening torque 20 - 30 Nm. For removing/installing, use approved spark plug wrench 119 569 01 09 00. Use only approved spark plugs with flat seat and seal. Check electrode gap. Specification=0.8 mm. |
Spark plugs
Since April 1988 Bosch spark plugs, and since September 1988 Beru spark plugs which have a central electrode of a larger diameter, have been installed. These spark plugs identified with a "0",
e. g.
| BERU | 14F-8DUO |
| BOSCH | H8DCO |
Since September 1989 Champion spark plugs which have a ground electrode with a copper core, have been installed. These spark plugs identified with a "C", e. g.
| CHAMPION | C10YCC |
| Normal compression | Low compression | |
|---|---|---|
| Spark plug | BERU 14F-8DUO | 14F-9DUO |
| Spark plug | BOSCH F8DCO | F9DCO |
| Spark plug | CHAMPION C10YCC | C12YCC |
Special tool
