Replacement of the knock sensors - ra15lh1042184x(2184)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Preceding work:
Removing and installing engine compartment panelling (61-0105)
Operation No. of operation texts and operation values or standard texts and flat rates 15-2184

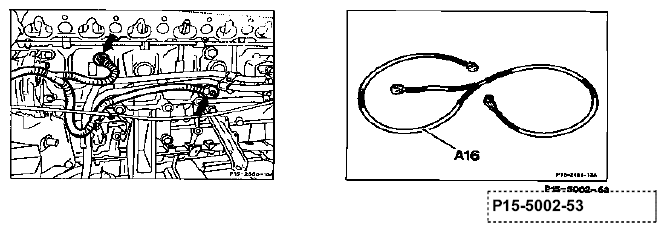

| Bracket for ignition pipe support | take off, fit on. |
| Bolts (arrows) | unscrew, screw in. Tightening torque 20 Nm as reference value. |
| Connector at EZL/AKR control unit | pull off, fit on. |
| Protective tube for wiring | unclip, clip in place. |
NOTE:
The tables of the two knock sensors (A16) are combined in a protective tube (corrugated tubing). They can only be replaced as a unit.
