Removing and installing generator - ra150d1405032x(5032)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Electrical System Engine 603 with pot-type generator
Operation no. of operation texts and work units or standard texts and flat rates:
D. Engine 603 with pot-type generator
Preliminary work:
Poly V-belt slackened (13-3420) .
Front noise encapsulation removed (94-5310).
Front torsion bar unscrewed at side member (32-300).
| Ground cable at battery | disconnect, connect. |

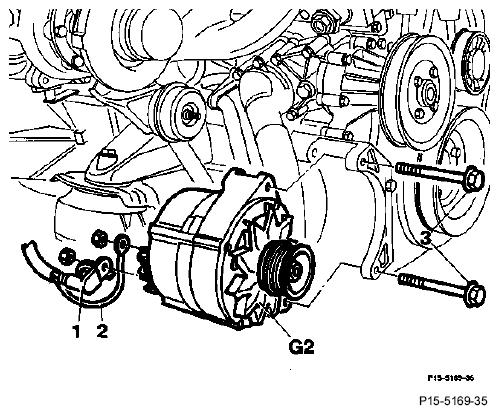

| Electric cables (1 and 2) at generator (G2) | disconnect, connect. |
| Bolts (3) | unscrew, screw in. |
| Generator (G2) | take out downward, insert from below. |
