Removal and installation of the glow plugs - ra15006024111x(4111)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96, 603. 96/97 TURBO (Model 463.3: for deviations see introductory notes)
Preceding work:
Operation no. of operation texts and work units or standard texts and flat rates: 15-4111
| Cable to glow plugs | disconnect, connect. |

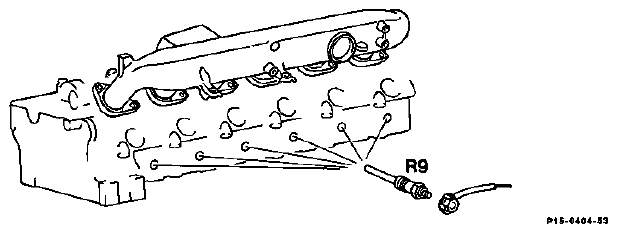

| Pencil-type glow plugs (R9) | remove, install. |
TIGHTENING TORQUES IN NM
| Quick-start pencil-type glow plugs | 20+2 Nm |
| Cable to glow plugs | 4 Nm |
COMMERCIALLY AVAILABLE TOOLS AND TESTERS
| Designation | e. g. make, order no. |
|---|---|
| 3/8" ratchet with universal joint | |
DISTINGUISHING FEATURES OF PENCIL-TYPE GLOW PLUGS
| Engine | 603.96 up to 08/88 | 602.96 and 603.96 as of 09/88 602.96 |
602.96 Std. and |
603.96 |
603.96 |
||||
| Injection/Preglow system | Vertical injection without afterglow | Oblique injection precombustion chamber 5°/180°(1)) 60 s afterglow | Oblique injection precombustion chamber 5°(2)) 15 s afterglow | Vertical injection 15 s afterglow | Vertical injection extended preglow time | ||||
| MB No. | 000 159 81 01 | 001 159 00 01 | 000 159 96 01 | 001 159 02 01 | 000 159 96 01 | ||||
| 000 159 83 01 | 000 159 99 01 | 000 159 99 01 | |||||||
| Beru No. | 0 100 221 107 | 0 100 221 162 | 0 100 221 138 | 0 100 221 164 | 0 100 221 138 | ||||
| 0 100 221 153 | 0 100 221 153 | ||||||||
| Bosch No. | 0 250 201 001 | 0 250 201 026 | - | - | - | ||||
| Length/transformation of glow tube in mm | 25/0.7 | 23/1.3 | 27/1.3 | 25/1.3 | 27/1.3 | ||||
| Glow current after approx. 8 s in amperes | 13-15 | 14-16 | 14-16 | 14-16 | 14-16 | ||||
| Identification | yellow | transparent with annular groove around hexagon | transparent black | olive | transparent black | ||||
|
|||||||||
