Removal and installation of the crankshaft position sensor - ra15lh1042133x(2133)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Preceding work:
Removing and installing engine compartment panelling (61-0105)
Operation No. of operation texts and operation values or standard texts and flat rates 15-2133
| Ground cable at battery | disconnect, connect. |

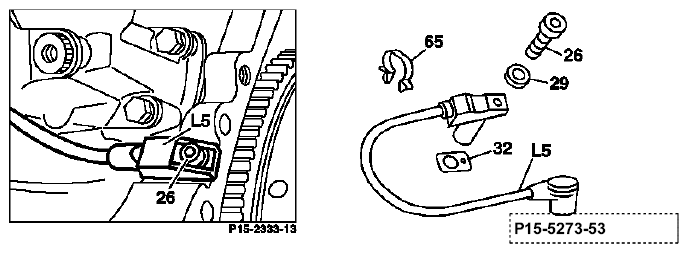

| Bolt (26) | unscrew, screw in. Tightening torque 10 Nm as reference value. |
| 1-pin coupling of crankshaft position sensor (L5) at EZL/AKR ignition control unit | unplug, plug in. |
| Electric cable of crankshaft position sensor (L5) | remove from cable duct, insert; to do this, detach the starter and unclip 4 clips from below, clip on. |
| Crankshaft position sensor (L5) | remove, install. |
NOTE:
Fit on the shim (32) when installing the position sensor (L5).
| LH control unit and EZL/AKR ignition control unit fault memories | read, erase if necessary (see Diagnosis Manual Engine, Volume 2, Index 0). |
