Replace spark plugs - AP15.10-P-1580EA
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 119.960 /97 /98
Engine 119.97
Engine 119.98
| Fig. item etc. | Work instructions | ||
|---|---|---|---|
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. pacemakers) must not perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| Notes on avoiding damage to ignition system | Engine 104, 111, 112, 113, 119, 120 with ME gasoline injection and ignition system | AH15.10-P-0002-01D | |
| Engines 103, 104, 119 with CFI fuel injection system | AH15.10-P-0002-01E | ||
| Engine 104, 119, 120 with LH sequential multiport fuel injection system | AH15.10-P-0002-01F | ||
| Spark plug connector | While connecting ensure that the ignition cables are placed correctly | ||

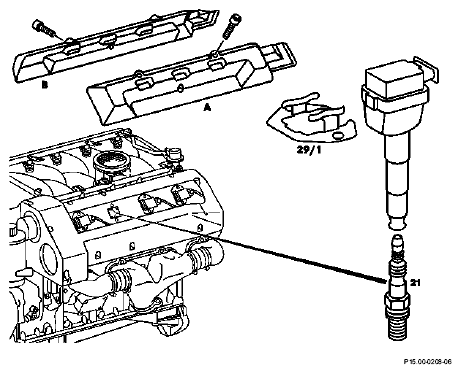

| A, B | Covers | ||
| 21 | Spark plugs | Use only approved spark plugs with flat seat and a sealing ring |
|
| *BA15.10-P-1001-01A | |||
| Figure | |||
| 29/1 | Mounting part | Note installation position |
| Number | Designation | Engine 104, 110, 111, 113.940/941/942/943/944/948/960/961/962/963/964/965/966/967/968/969/971/980/981/982/984/986/992/993/995, 115, 117, 119, 120 | Engines 112.910/911/ 912/913/914/ 915/916/917/920/921/922/923/940/941/942/943/944/945/946/947/949/951/953/954/955/960/961/970/972/973/975/976 | |
|---|---|---|---|---|
| BA15.10-P-1001-01A | Spark plugs | Nm | 28 | 28 |
