Removing and installing oil shield at crankshaft - RA18001042180X(18-2180)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Oil sump removed (01-3100)

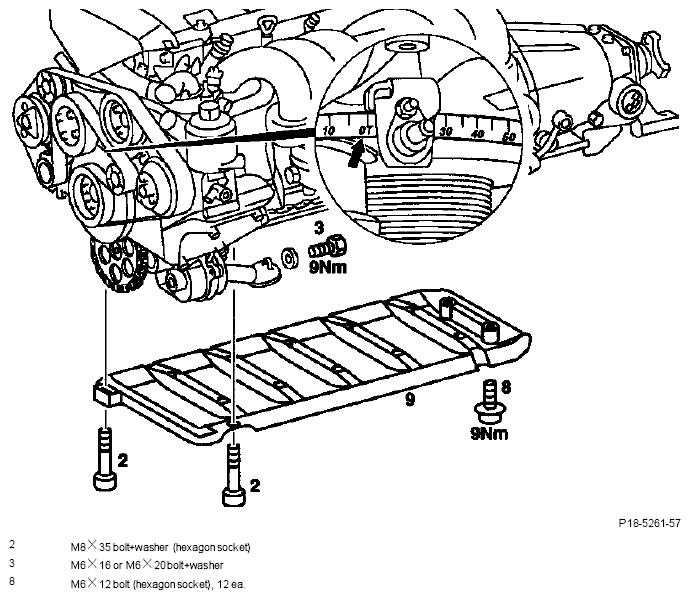

| Piston of cylinder 1 | position to TDC (arrow) so that the crank webs of cylinder 2 are facing up. |
| Bolts (2) of oil pump and bolt (3) of intake | unscrew, screw on. M6 9 Nm; |
| manifold support | M8 21 Nm. |
| Bolts (8) | unscrew, screw on (9 Nm). |
| Oil shield (9) | remove, install. |
