Removing and installing oil pressure relief valve in oil pump - RA18001042150X(18-2150)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Oil sump removed (01-3100)
Operation no. of operation texts and work units or standard texts and flat rates
18-5043

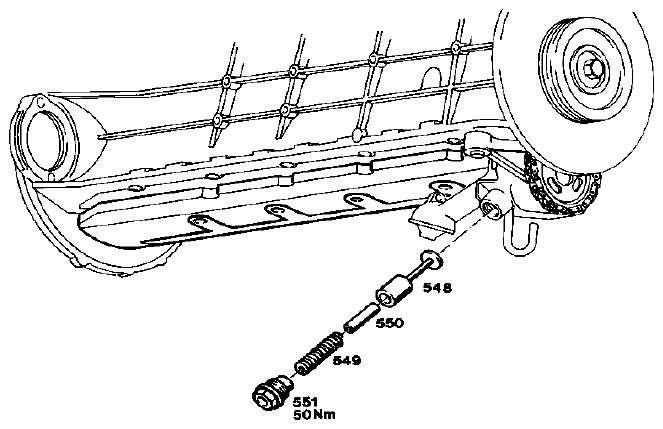

| Screw plug (551) | unscrew, tighten, 50 Nm. |
| Compression spring (549) | remove, install. |
| Guide pin (550) | remove, install. |
| Plunger (548) | remove, install. |
