Removing and installing oil level sensor - RA18001193300X(18-3300)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Bottom engine compartment panel removed
(Maintenance Manual 6190). 18-4111, 4113
Engine oil drained (18-0020) .
Operation no. of operation texts and work units or standard texts and flat rates

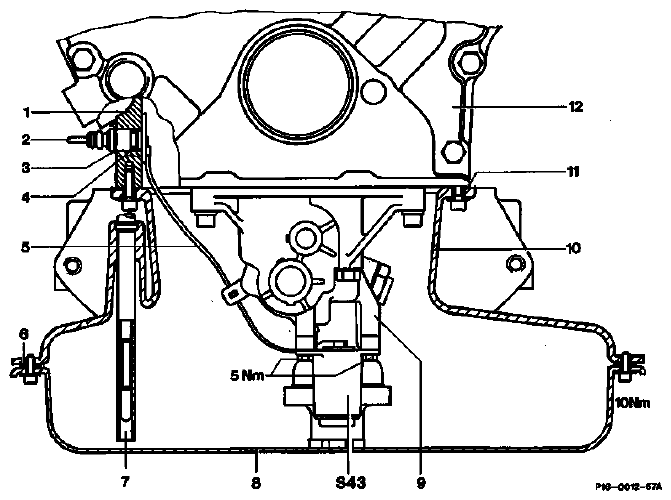

| Cable straps on bottom part of oil sump | detach, attach. |
| Oil line of automatic transmission on bottom part of oil sump (8) | unbolt, bolt on (9 Nm). |
| If level control fitted: high pressure flexible hose on bottom part of oil sump (8) | unbolt, bolt on (9 Nm). |
| Bottom part of oil sump (8) | unbolt, bolt on (9 Nm). |
| Sealing surfaces | clean. |
| Gasket (6) | replace. |
| Plug connection of oil level sensor (S43) at crankcase | unplug. |
| Locking element (3) at pin (2) of plug connection | pull off, fit on. |
| Oil level sensor (S43) with connection cable (5) and pin (2) of plug connection | remove, install. |
| Model 140: spacer sleeves | do not forget, see Note. |
| O-ring | replace. |
| Leaks | check with engine running. |
Special tool
NOTE:
Check length of spacer sleeves. Attach oil level sensor with 2 spacer sleeves, length 12 mm, part no. 119 991 02 40 and 2 M6 X 25 hexagon socket bolts, part no. 000 912 006 042, to oil pump. If spacer sleeves are too long (20 mm), oil warning lamp already lights up between Max. and Min. markings on dipstick.
Standard production break point of 12 mm long spacer sleeves (was 20 mm):
Engine no.
119.970 12 001 385
119.971 12 000 604
