Removing and installing oil level sensor - RA18001043300X(18-3300)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Bottom engine compartment removed
(Maintenance Manual 6190) 18-4111, 4113
Operation no. of operation texts and work units or standard texts and flat rates:

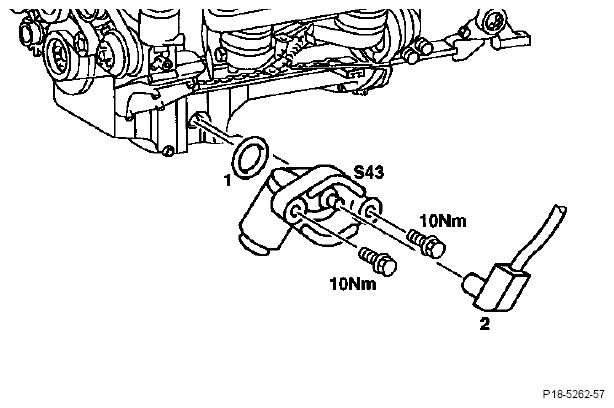

P18-5262-57
| Engine oil | drain partially, pour in (18-0020) . |
| Coupling (2) at oil level sensor (S43) | unplug, plug in. |
| Oil level sensor (S43) | remove and install.
NOTE:
From 01/95 the oil level sensor (S43) is attached with self-tapping screws. If the oil sump is replaced, fit on oil level sensor (S43) with self-tapping screws (20 mm long, previously 25 mm long). |
| O-ring (1) | replace according to condition. |
| Engine | run, check for leaks.
NOTE:
Function of oil level indicator, see (18-3100) .
|
