Removal and installation of the oil pump - ra18006010210x(0210)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engines 601, 602 (except 602.98), 603

Preceding work:

Oil sump removed (01-310A).

Front axle housing removed (01-310B)

Operation no. of operation texts and operation values or standard texts and flat rates 18-6023

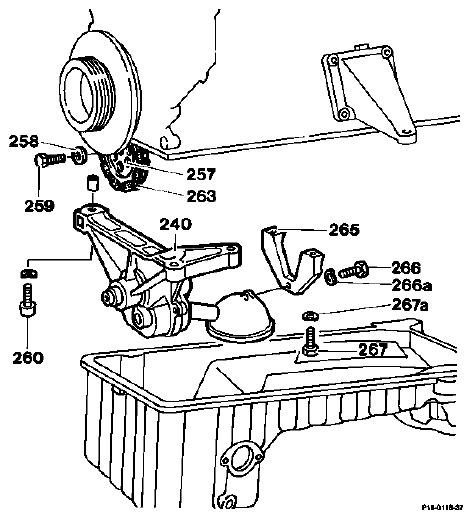

Fig 1: Identifying Oil Pump Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

ENGINE 601

Sprocket wheel (257)

detach, attach, hex. bolt (259), 25 Nm. Install sprocket wheel with curvature facing oil pump.

ENGINES 602 AND 603

Support (265)	unscrew from intake snorkel of oil pump, screw on, hex. bolt (266, 267), 10 Nm.
Oil pump (240)	detach, attach, hex. socket screws (260), 25 Nm.

NOTE: Modification to shape of oil deflector plate as of 04/84

The vibration properties have been improved by modifying the shape of the oil deflector plate (arrow).

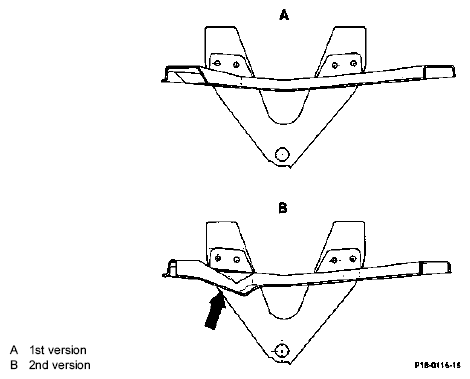

Fig 2: Locating Oil Deflector Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Production modification of oil pump chain as of 06/88

An oil pump chain with open sleeves is fitted to reduce wear.

Oil pump, engine 603.96

Since 01/90 oil pumps with relief groove for shielding noise have been fitted to these engines.

Oil pump chain

Engines 602 and 603

Since 03/90 oil pump chains of the make Daido have been fitted.

TIGHTENING TORQUES

	Nm
Hex. bolt of sprocket wheel	32
Hex. socket screws of oil pump	25
Hex. bolts of intake manifold bracket (engines 602, 603)	25

Special tool

Fig 3: Identifying 00 (001 589 72 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal and installation

Unscrew hex. bolt (259) and take sprocket wheel off the chain.
Installation instruction

Tightening torque 32 Nm.

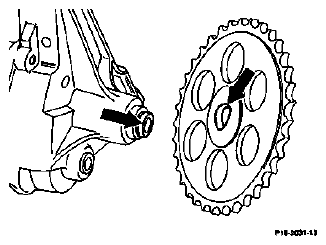

Fig 4: Locating Sprocket Wheel Bolt
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Installation instruction

Tightening torque 32 Nm. Install sprocket wheel so that the curvature is facing the oil pump (arrows).

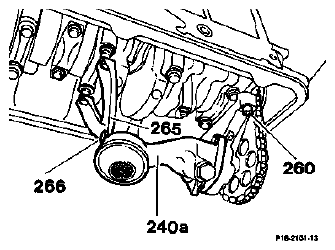

Fig 5: Locating Oil Pump
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 602 and 603
Unscrew hex. bolt (266) at the support (265) of the intake snorkel of the oil pump.
Installation instruction

Tightening torque 25 Nm.
Unscrew hex. socket screws (260) of the oil pump (240a) and take off oil pump.
Installation instruction

Tightening torque 25 Nm.

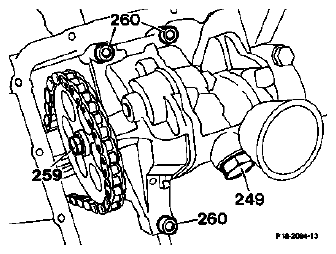

Fig 6: Identifying Screws And Oil Pump
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 602.96 and 603.970
Unscrew additionally hex. socket screws (260) and take off oil deflector plate (239).
Installation instruction

Tightening torque 25 Nm.

Engine 602.96

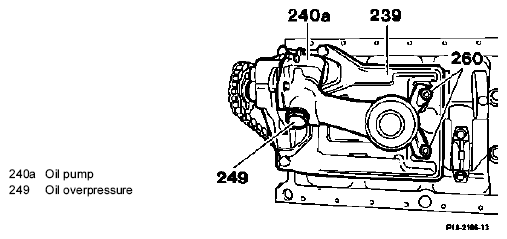

Fig 7: Identifying Socket Screws And Oil Deflector Plate
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

valve screw plug
Installation is performed in the reverse order.

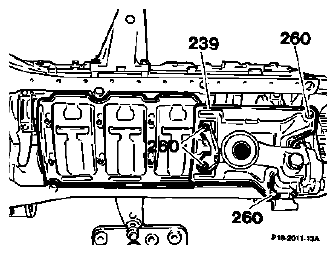

Fig 8: Identifying Socket Screws And Oil Deflector Plate
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 603.97
