Measurement of the oil consumption - ra18006010025x(0025)
Engines 601, 602 (except 602.98), 603
Operation no. of operation texts and operation values or standard texts and flat rates 18-1010 18-1020
| Engine | check for external loss of oil. |
| Engine oil change | perform (18-002). |
| Car | park on a level spot and mark spot. |
| Engine oil temperature | warm up to 80 °C. Measure oil temperature with remote thermometer 124 589 07 21 00. |
| Engine | switch off; wait exactly 5 minute before measuring oil level with the appropriate dipstick 115 589 15 21 00 or 120 589 06 21 00, respectively. The part number of the dipstick used should be stated on the oil consumption measurement sheet. The millimeter scale of the dipstick must be pointing toward the engine. Withdraw dipstick after 3 seconds. Read off oil level. The oil level must not be higher than the level stated on the oil consumption measurement sheet. Avoid overfilling oil. Adjust oil to correct level and repeat measurement. Read off the quantity of oil from the diagram of the oil measurement sheet for the oil level indicated and enter in sheet. |
| Test drive | must be performed over a distance of 250 km (if measurement conducted by workshop personnel) or 1000 km (if measurement conducted by customer). If measurement conducted by workshop personnel, take into account the conditions in which the customer normally drives the car. |
| Car | park on marked spot. |
| Engine oil temperature | measure with remote thermometer 124 589 07 21 00. |
| Oil consumption | calculate in liters/100 km from quantity of oil consumed (cm 3) and distance driven (km). |
| Engine | Print no. (German/English) | Print no. (French/Spanish) |
|---|---|---|
| 601.911/912 | 6516 7457 41 | 6516 7457 42 |
| 602.911/912 603.912 | 6516 7458 41 | 6516 7458 42 |
| 603.913/963 | 6516 7472 41 | 6516 7472 42 |
| 602.961/962 603.960/961/962 | 6516 7459 41 | 6516 7459 42 |
| 603.970 | 6516 7473 41 | 6516 7473 42 |
| 603.971 | 6516 7474 41 | 6516 7474 42 |
| Measurement sheet for weighing method | 6516 7401 41 | 6516 7401 42 |
| Nm | |
|---|---|
| Oil drain plug M 12 X 1.5 X 13 | 30 |
| Oil drain plug M 14 X 1.5 X 22 | 25 |

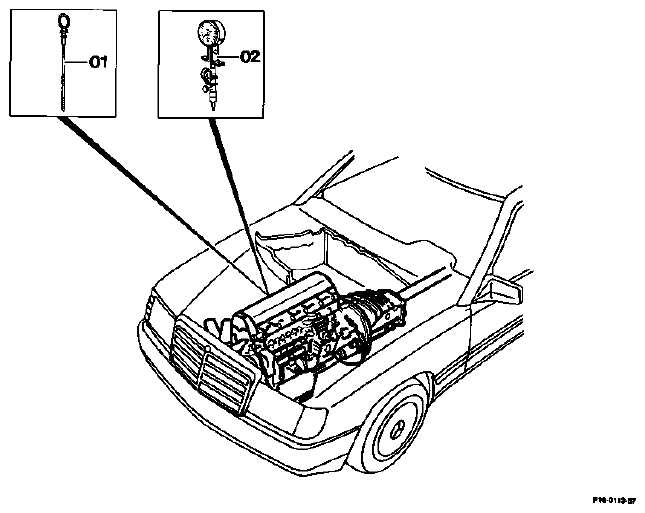

Special tools
The procedure for the oil consumption measurement is described on the front side of the measurement sheet. It is essential to observe this procedure to avoid incorrect measurements.
The oil consumption for engines for which no measurement sheet exists, can be obtained using the weighing method.

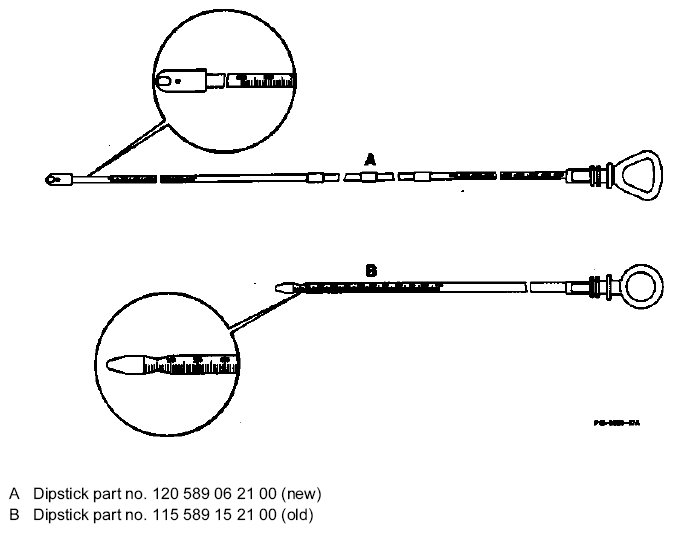

New oil consumption dipstick
A new dipstick with a millimeter scale is required for engines 602.91 with exhaust gas recirculation and side section on the oil sump.
Because of this length, the dipstick touches the bottom of the oil sump and projects out of the guide tube.
Dipstick with part no. 115 589 15 21 00 remains valid.
The part number of the dipstick used should be stated on the measurement sheets.
Measurement procedure
The oil consumption test drive can also driven by the customer himself. A distance of 1000 km should be covered as a general rule.
Customer information regarding oil consumption should be taken into account:
Top up engine oil only to the level stated.
The engine oil level should be determined by the workshop personnel before and after the oil consumption test drive and entered in the sheet.
If the oil consumption test drive is conducted by the workshop personnel, a distance of 250 km (previously 100 km) should be covered.
Engine oil
The oil consumption test drive should only be conducted with fresh engine oil. For this reason, the engine oil should be changed before conducting the test drive.
It is not necessary to change the engine oil if the last oil change was performed within the last month or if the vehicle has been driven not more than 1000 km since the last engine oil change.
If a high oil consumption is indicated (> 2 liters/1000 km), shorten the distance driven if necessary.
If a low oil consumption is indicated (< 2 liters/1000 km), the distance driven may be more than 1000 km.
