Support front axle carrier with inspection pit lift or assembly lift - AR33.10-P-0100-03A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Use assembly support

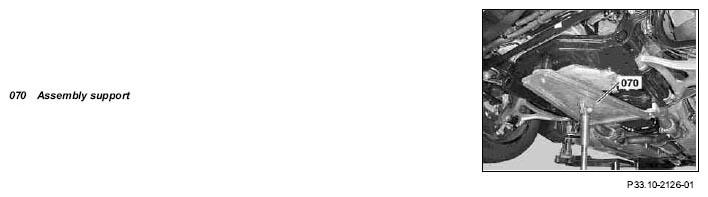

Fig 1: Identifying Assembly Support (140 589 00 62 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 140

Fig 2: Identifying Assembly Support (Model 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Lash front axle carrier securely to assembly support with strap before removing front axle. The front axle can otherwise fall off the assembly support.

Model 240

Fig 3: Identifying Assembly Support (Model 240)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
