Check rubber boot on follower joint for leakage and condition - AP33.20-P-3353-02DA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Check rubber boot (8f) for leaktightness and condition.
If rubber boot is leaking (e.g. grease leaking out) install new upper transverse control arm (6).

Model 140

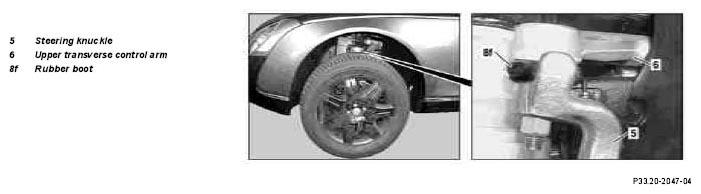

Fig 1: Checking Rubber Boot On Follower Joint For Leakage And Condition - Model 140
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 170, 202, 208, 210

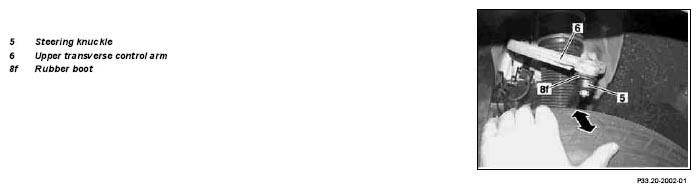

Fig 2: Checking Rubber Boot On Follower Joint For Leakage And Condition - Models 170, 202, 208, 210
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211, 215, 220, 230

Fig 3: Checking Rubber Boot On Follower Joint For Leakage And Condition - Model 211, 215, 220, 230
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODEL 240

Fig 4: Checking Rubber Boot On Follower Joint For Leakage And Condition - Model 240
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
