Removal and installation of the trap oxidizer (USA) - ra14006020100x(0100)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96 603.96/97 TURBO (Model 463.3: for deviations see introductory notes)
Preceding work:
Operation no. of operation texts and work units or standard texts and flat rates:
| Vehicle | drive onto inspection platform or pit. |
| Bottom section of noise encapsulation | attach, detach (Model 124 only). |
| Air cleaner | remove, install (09-1051). |

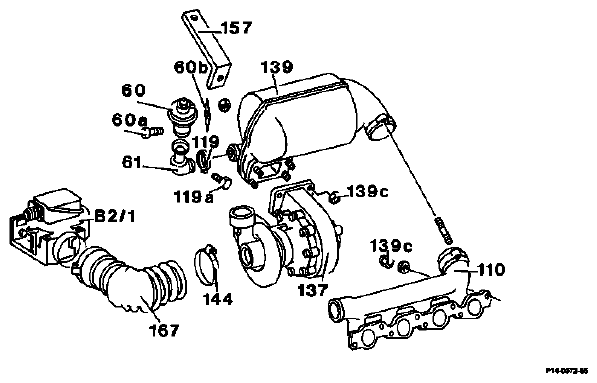

| Hose clip (144) | slacken at air flow sensor (B2/1) and detach intake hose (167), fit on. |
| Partition wall between trap oxidizer and air cleaner | remove, install (9 bolts) of which 6 accessible from above, 3 accessible from below (refer to instruction). |
| Vacuum line red/violet/brown on ARF valve (60) and red/violet/blue on air recirculation valve | detach, fit on. |
| Clip (119) on corrugated pipe (61) | slacken, tighten. |
| ARF valve (60) | remove, install. |
| Trap oxidizer (139) on exhaust manifold (110) | unscrew, screw on. |
| Supporting bracket | unscrew, screw on and remove at the same time as trap oxidizer. |
| Bracket (157) | remove, install. |
| Sealing surfaces | clean. |
| Gasket (60b) | renew. |
| Screw (60a) 2 off | install, tightening torque 25 Nm. |
| Bolt for clip (119 a) Nut (139c, 6 off M10) | install, tightening torque 45 Nm. |

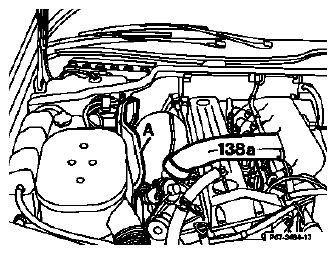

NOTE:
Remove, install partition wall (A) (9 bolts), of which 6 accessible from above and 3 accessible from below.
