Removal and installation of the electro magnetic clutch - ra14lh1047264x(7264)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Preceding work
Removing and installing air pump (14-7251)
Removing and installing poly V-belt (13-340)
Operation No. of operation texts and operation values or standard texts and flat rates; 14-7264

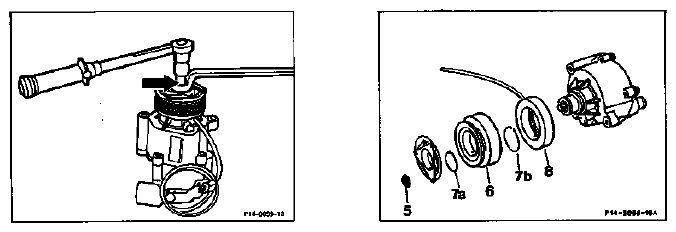

| Nut (5) | unscrew, screw on. Hold tight with hexagon |
| socket (arrow) when performing this step. Tightening torque 35 ± 5 Nm. |
|
| Retaining ring (7a) | remove, install. |
| Drive gear (6) | pull off, fit on. |
| Retaining ring (7b) | remove, install. |
| Electromagnet (8) | take off, fit on. |
Special tools
NOTE:
Electromagnet (8) must engage in the locking pin (arrow).
