Removal and installation of the air pump - ra14lh1047251x(7251)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Preceding work
Removing and installing poly V-belt (13-340)
Removing and installing viscous fan (20-6600)
Operation No. of operation texts and operation values or standard texts and flat rates; 14-7251

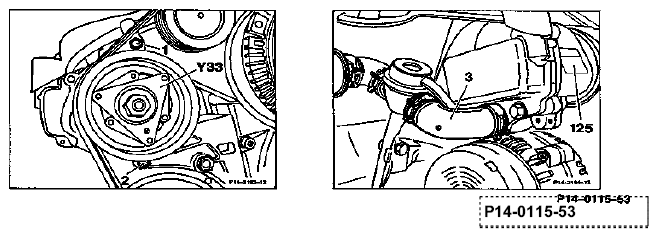

| Air pump electromagnetic clutch (Y33) connector | pull off, fit on. |
| Bolts (1, 2) | unscrew, screw in. |
| Molded hose (3) | detach, fit on. |
| Air pump (125) | take off, fit on. |
|
NOTE:
After installing, tension poly V-belt (13-340).
|
