Removing, installing hydraulic valve clearance compensation elements (bucket tappets) - AR05.00-P-2011HX

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601, 602, 603 (except, 602.982)

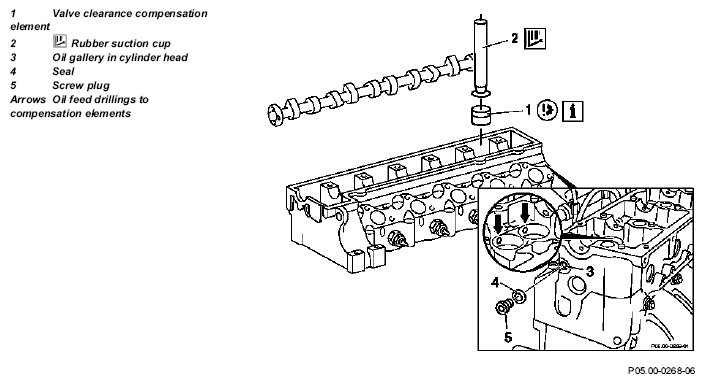

Fig 1: Identifying Hydraulic Valve Clearance Compensation Elements (Bucket Tappets) Remove/Install Components
G05438326Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove camshaft   ra05006010220x
2 Pull out compensation element (1) COMMERCIALLY AVAILABLE TOOLS
IMPORTANTInstallation:  re-install compensation elements (1) which are not replaced, at the same point.
Oil compensation element (1).		 *WH58.30-Z-1041-02A
3 Remove screw plug (5) and blow compressed air into oil gallery (3) IMPORTANT At the same time, inspect clearance of outlet drillings (arrows) at the seat of the valve tappet.
IMPORTANTInstallation:  replace seal (4).
4 Install in the reverse order
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1041-02A Rubber suction cup, dia. 30 mm
