Removing and installing valve springs and/or valve stem seals - AR05.30-P-3500HX

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601, 602, 603 (except, 602.982)

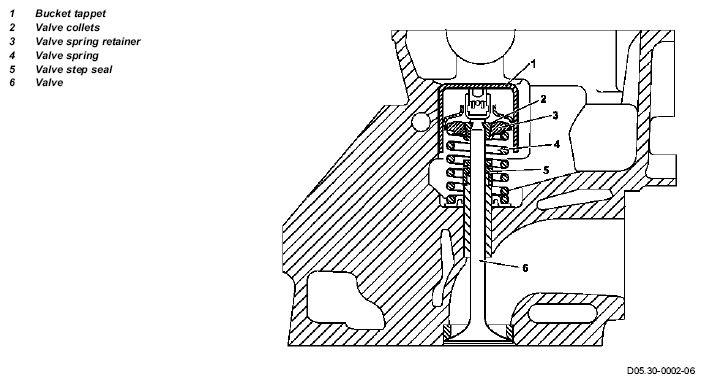

Fig 1: Identifying Valve Springs And/Or Valve Stem Seals Remove/Install Components
G05438378Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove camshaft   ra05006010220x
2 Remove injection nozzles Naturally aspirated engine ra07016010230x
    Turbo engine ra07016026810x
3 Position pistons of the relevant cylinder to TDC COMMERCIALLY AVAILABLE TOOLS Use TDC detector
4 Insert retaining lock for crankshaft/starter ring gear   ra03006010500x
5 Connect cylinder leak tester IMPORTANT Pressurize compression chamber of the relevant cylinder to about 5 bar.
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1015-05A
    SPECIAL TOOL Use connector on engines with oblique injection. Fig 4
6 Remove bucket tappet (1) IMPORTANT only at the relevant cylinder
7 Remove valve springs and valve stem seals   AR05.30-D-3510-02A
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
8 Repeat the procedure for the remaining cylinders from step 4 NOTES Remove retaining lock, turn crankshaft on, install.
9 Install in the reverse order
Fig 2: Identifying Retaining Lock (603 589 01 40 00)
G05438379Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Assembly Board (601 589 01 59 00)
G05438380Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Connector (602 589 00 63 00)
G05438381Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Valve Assembly Tools Case (111 589 25 61 00)
G05438382Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Pliers (606 589 00 37 00)
G05438383Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1015-05A Cylinder leakage testing unit
