Checking basic position of camshafts - AR05.20-P-6010HW

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601, 602, 603, 602.983

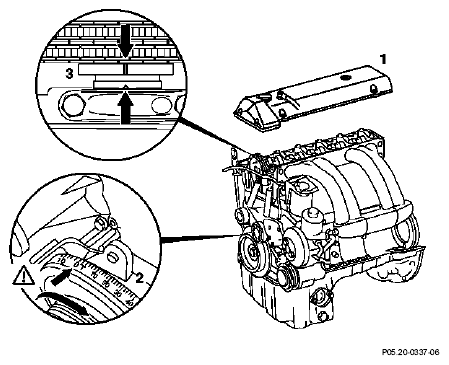

Fig 1: Identifying Position Of Camshafts - Engine 601, 602, 603, 602.983

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig. item etc.	Work instructions
2	Position piston of cylinder 1 to ignition TDC	Rotate engine at crankshaft. Engine must not be rotated at the camshaft or cranked backward.
3	Inspect basic position of camshaft	The marking on the camshaft (arrow) should be aligned with the marking at the 1st camshaft bearing cap (arrow). Set, if necessary, after inspecting.
