Removing and installing slide rails (arrangement) - RA05001193330X(05-3330)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engine 119.96
    Fig 1: Identifying Slide Rails Remove/Install Components - Engine 119.96
    G04677720Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Engine 119.97/98

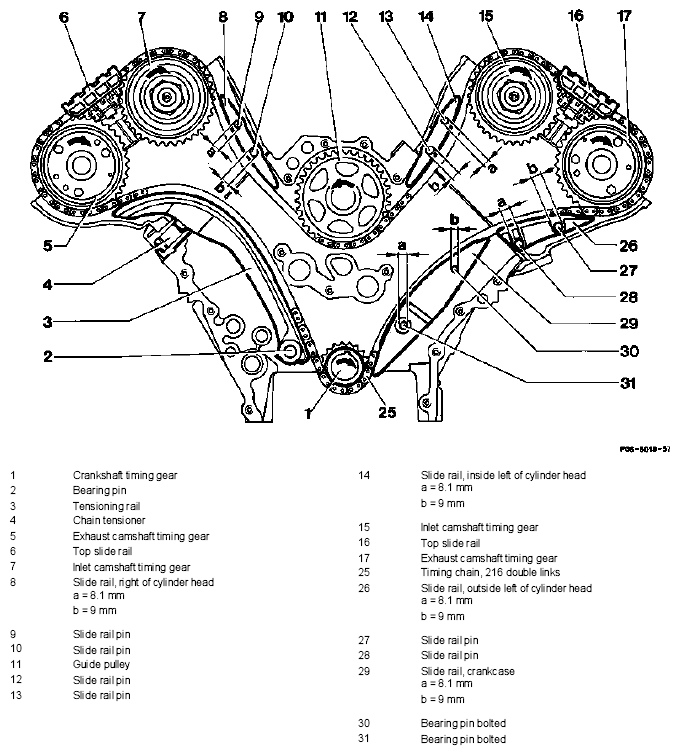

    Fig 2: Identifying Slide Rails Remove/Install Components - Engine 119.97/98
    G04677721Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
