Removing and installing guide sprocket, engine 104.98 - RA05001044400X(05-4400)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Operation no. of operation texts and work units or standard texts and flat rates:
05-8051-8052
| Front cover | remove, install (01-2120) . |
| Inlet camshaft | rotate in opposite direction of rotation until timing chain slackened. |
| Front side of guide sprocket | mark because of direction of rotation. |
| Bolt (3) "left-hand thread" | unscrew, screw in, tighten 35 Nm (step 3). |

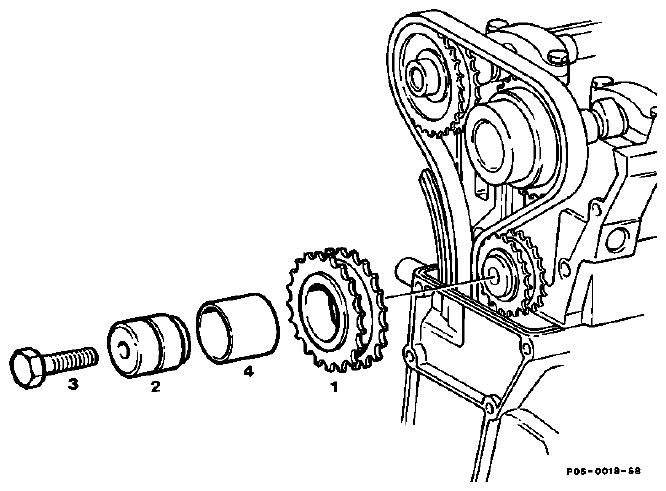

| Guide sprocket (1) with bearing journal (2) | take off, fit on (step 4). |
TIGHTENING TORQUES IN NM
| Bolt (left-hand thread) | 35 |
Removing and installing
- Rotate inlet camshaft in opposite direction of rotation until timing chain at guide sprocket is slackened.
- Mark front side guide sprocket. A used guide sprocket should rotate in the same direction.
- Unscrew bolt (3) "left-hand thread" , screw in and tighten. Tightening torque 35 Nm.
- Take off guide sprocket (1) together with bearing journal (2). Oil bearing bush and fit on.
