Removing and installing crankcase guide rail - RA05001203400X(05-3400)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Timing case cover (24) removed (01-2100) .

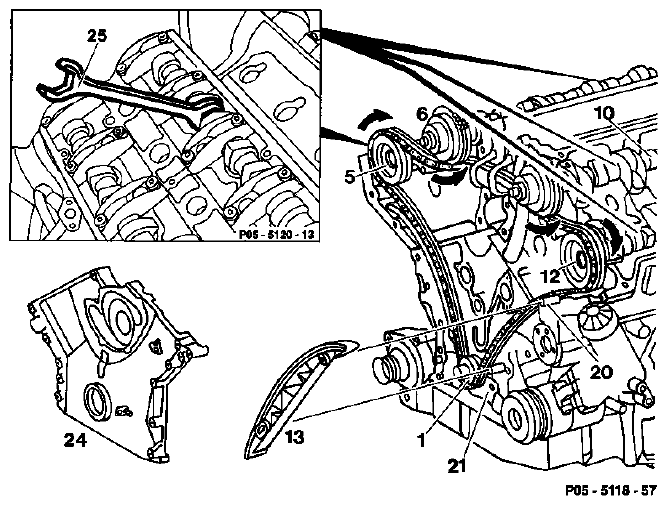

| Crankshaft sprocket (1) | mark with coloured dot relative to timing chain (4). |
| All camshafts (5), (6), (10) and (12) | rotate with wrench (25) 104 589 01 01 00 in direction of rotation of camshaft, beginning at right exhaust camshaft (5) (slacken timing chain) (4). |

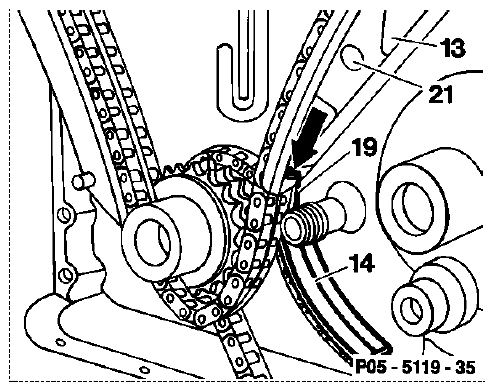

| Tensioning spring (19), tensioning rail, oil pump chain (14) | remove from guiding rail (13), insert (arrow). |
| Guiding rail (13) | pull off guiding rail pins (20 and 21). |
| Guiding rail (13) | install, pay attention to coloured marking. |
NOTE:
The plastic liner (sliding surface) is clipped into the guiding rail (13) and can be replaced individually. The bearing pin (21) is knocked into the crankcase. Projection 40 mm.
Special tool
