Removing and installing guide rails at top of cylinder head - RA05001193350X(05-3350)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Valve covers removed (01-0500) .

Fig 1: Identifying Guide Rails At Top Of Cylinder Head

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Release device (B)	insert into top detents, special tool 119 589 01 63 03 (step 1).
Pusher (A)	fit onto the rail, special tool 119 589 01 63 00 (steps 2 to 3).
Pusher (A)	push down (step 4).
Front part of guide rail (2)	take off.
Guide rail (2a) with rubber gasket	unbolt, bolt on (9 Nm).

Special tools

Fig 2: Identifying Special Tool (119 589 01 63 00 05)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tool (001 589 72 21 00 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removing, installing

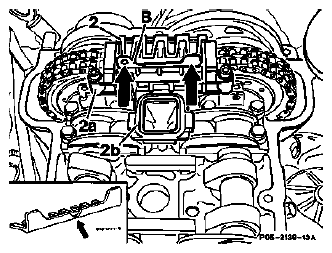

Release top detent of rail by inserting the release tool (B) in direction of arrow between bottom part of slide rail (2a) and top part (2).

Fig 4: Identifying Slide Rail And Top Part
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

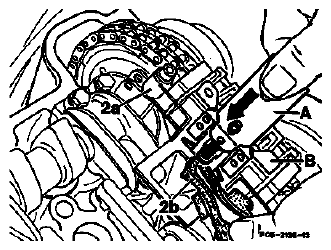

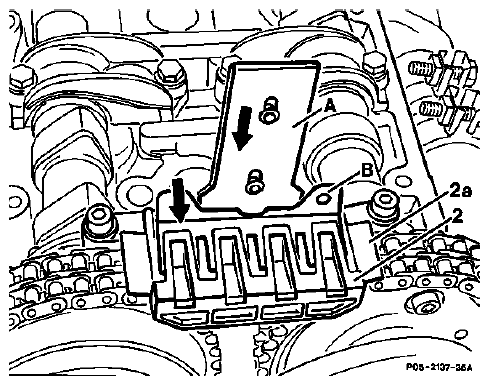

Raise rubber gasket (2b) so that pusher (A) can be inserted at the slide rail (2a).

Fig 5: Identifying Rubber Gasket And Pusher
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

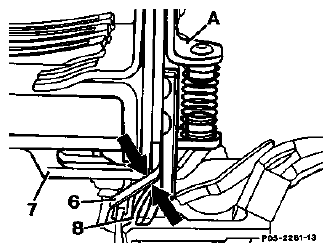

Guide the metal tabs (6) of the pusher (A) through between the bottom detent (7) and the locking tabs (8) (arrows).

Fig 6: Identifying Metal Tabs And Locking Tabs
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

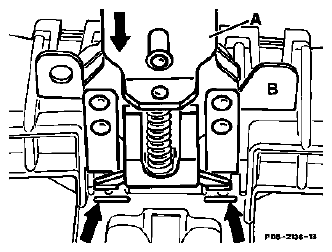

Introduce pusher (A) into the slots (arrows) of the rail and press down vertically at the handle until front part of slide rail can be removed.
Installation instruction

Ensure engaging points are correctly positioned.
Unscrew bottom part of slide rail (2a), tightening torque 9 Nm.

Fig 7: Locating Slots And Pusher
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
