Removing and installing follower at camshaft - RA05001042178X(05-2178)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Warning instructions when hood open (01-0085)
Engine 104.980/981/990
| Model 124: | remove viscous fan clutch, install (20-3120) . |
| Model 140: | take off fan shroud ring at fan shroud, place over fan, install (20-3400) . |
| Shielding cap (11) | unclip on both sides, take off, fit on. |
| Ignition cable 1 at HT distributor (12) | unplug, plug in. |
| High tension distributor (12) | unbolt, tilt up, install. |
| Distributor rotor (6) and follower (4) | remove, install.
NOTE:

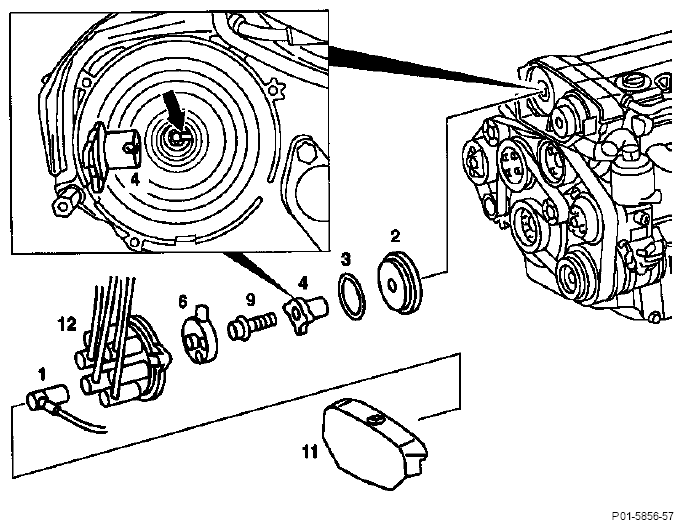

The slot of the follower (4) must engage in the locating pin (arrow) in the camshaft, (16 Nm).
|
| Protective cap (2) and seal (3) | take off, fit on. |
TIGHTENING TORQUES IN NM
| Distributor rotor to follower (reference value) | 2,5 |
| Follower to camshaft (Torx) | 16 |
