Removal and installation of the tensioner rail - ra05006010330x(0330)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 601, 602 (except 602.98), 603
Preceding work:
Cylinder head removed (01-415)
Timing case cover removed (01-210)
Chain tensioner removed (05-310 ).
Operation no. of operation texts and work units or standard texts and flat rates 05-8126

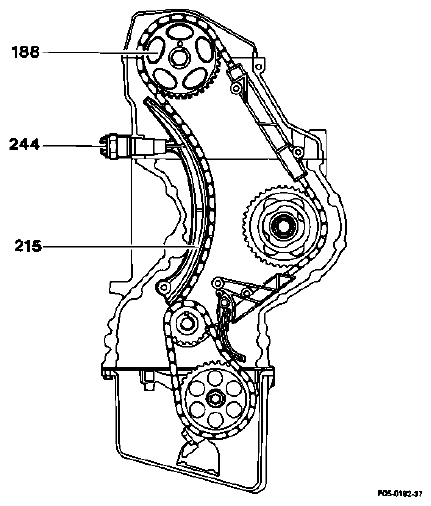

| Tensioner rail (215) | pull off, put on. |
NOTE:
Plastic layer on the tensioner rail cannot be replaced.
NOTE:
Since 08/86 unhardened straight pins have been fitted for the tensioner rail bearing.
Data

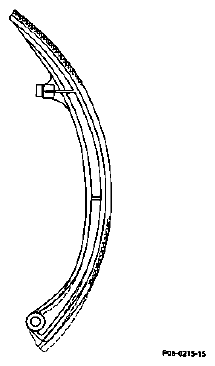

Since 09/86 the lead-in tangent (contact surface) on the tensioner rail has been extended, thus reducing lining wear. Dotted line shows former design.
