Checking basic setting of camshafts - RA05001202230X(05-2230)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Cylinder head covers removed (01-0500) .

Viscodrive fan removed (20-3120) .

Operation no. of the operation texts and work units or standard texts and flat rates: 05-6010

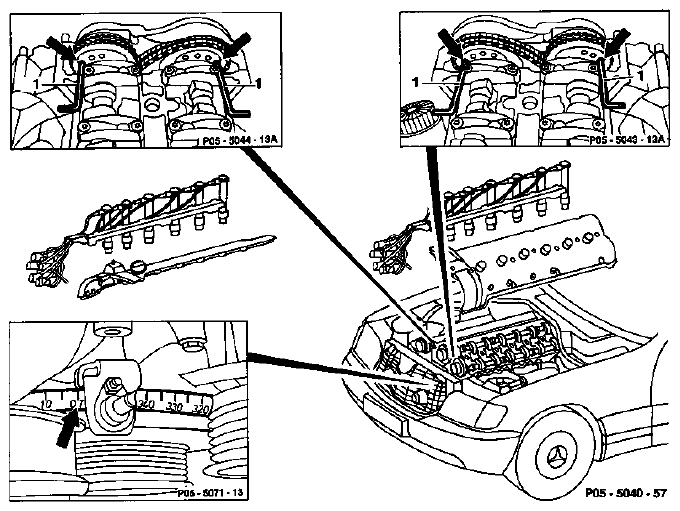

Fig 1: Identifying Basic Setting Of Camshafts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

CAMSHAFT FLANGES REFERENCE

Piston of cylinder 1	rotate to ignition TDC with wrench socket 001 589 65 09 00 (steps 1 and 2).
The 4 mm dia. holes in the camshaft flanges (arrows)	are touching the top edge of the cylinder heads (step 2).
Pins (1)	insert into the holes (arrows) (step 3). Camshaft adjuster against retarded stop.

Special tools

Fig 2: Identifying Special Tool (001 589 65 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tool (111 589 03 15 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Checking

Rotate piston of cylinder 1 to ignition TDC position.
To do this, rotate crankshaft in direction of rotation of engine with wrench 001 589 65 09 00 until the TDC marking (arrow) on the vibration damper (8) is aligned with the TDC pointer (7) on the timing case cover.

Fig 4: Locating Vibration Damper TDC Markings (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Locating Vibration Damper TDC Markings (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

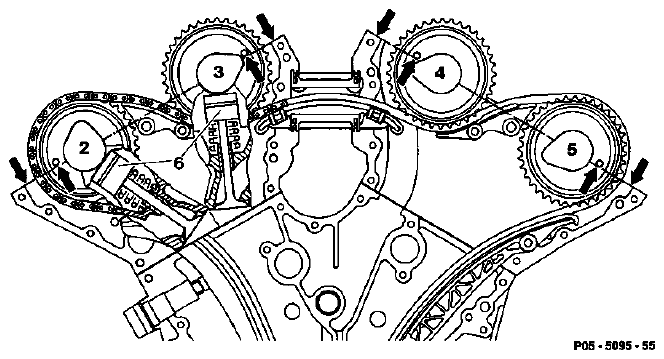

The piston of cylinder 1 is in ignition TDC when the base circles of the righthand intake/ exhaust camshaft at cylinder 1 are resting against the bucket tappets (6).

Camshaft adjuster of intake camshafts against retard stop (mechanical stop in direction of rotation of camshaft).

The 4 mm holes (arrows) in the camshaft flanges are touching the top edge of the cylinder heads (arrows).
As a check, insert 4 mm dia. pins (111 589 03 15 00) into the holes (arrows) in the camshaft flanges at the left and right cylinder head.

Fig 6: Inserting Pins Into Holes In Camshaft Flanges
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Adjust basic setting (05-2240) .
