Replacing ring gear of driven plate - AR03.30-P-8313AO

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120

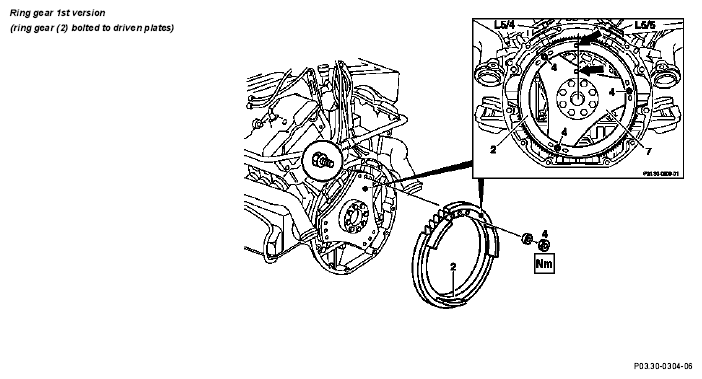

Fig 1: Identifying Ring Gear Of Driven Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig. item, etc.	Work instructions
2	Ring gear	Removing: driven plates and ring gear are individually balanced and can be replaced without balancing. Installation : the ring gear (2) should be installed in such a way that the 3.5 mm ø holes (arrows) in the ring gear (2) and in the driven plates (7, 8) have the same angle position otherwise proper operation of the ignition is not assured.
