Checking the propeller shaft companion plates for wear - wh4152pkw0000x(4152)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85

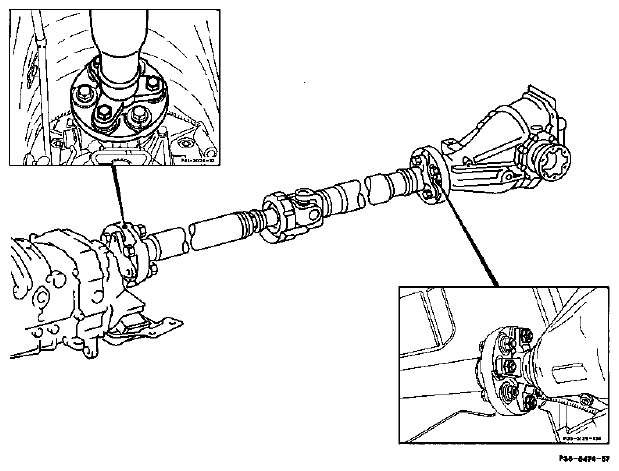

| Companion plates
NOTE:
If worn or damaged, replace companion plates at extra cost.
|
check for wear and damage as well as deformation (visual check). |
NOTE:

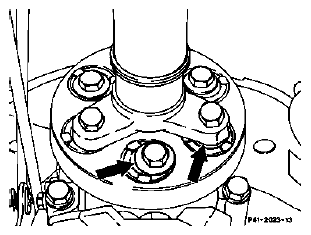

On the radially softer (soft thrust) and tangentially softer (soft tension and thrust) companion plates mounted on the transmission side, check the lands in the area of the fitted sleeves (arrows) for cracks (visual check).
If deformed, release tension on propeller shaft. If deformation is still present, replace companion plate on separate order.
