Check propeller shaft flexible couplings for signs of damage and deformation - AP41.10-P-4152Z: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 129, 140, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230

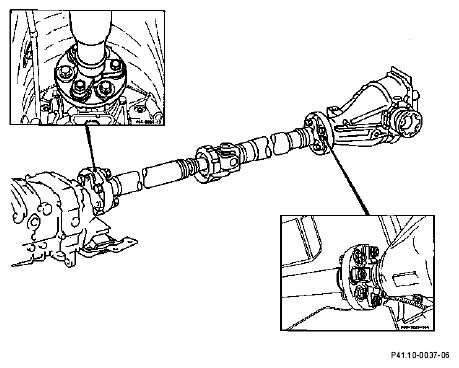

Fig 1: Checking Propeller Shaft Flexible Couplings For Signs Of Damage And Deformation

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Check
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform
2	Check flexible couplings and vibration damper for wear, damage and deformation	If damage is detected during the visual inspection: ↓ Install new flexible coupling and/or vibration damper as a separate repair order.
3.1	Check spacers of flexible coupling in vicinity of fitting sleeves for cracks and permanent deformation	Only on vehicles with flexible couplings with flexible thrust response mounted at transmission end. If damage is detected during the visual inspection: ↓ Install new flexible coupling as a separate repair order.	AP41.10-P-4152-01ZA
4	Check spacers of vibration damper for cracks	If damage is detected during the visual inspection: ↓ Install new vibration damper as a separate repair order.	AP41.10-P-4152-02ZA
