Replacement of the center and tail silencer - ra49lh1044940x(4940)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

A. Tail silencer B. Center silencer Engine 104 LH-Injection

Preceding work:

Removing and installing exhaust system from flanged connection

Operation No. of operation texts and operation values or standard texts and flat rates

Tail silencer

Centre silencer

Renewing tail silencer

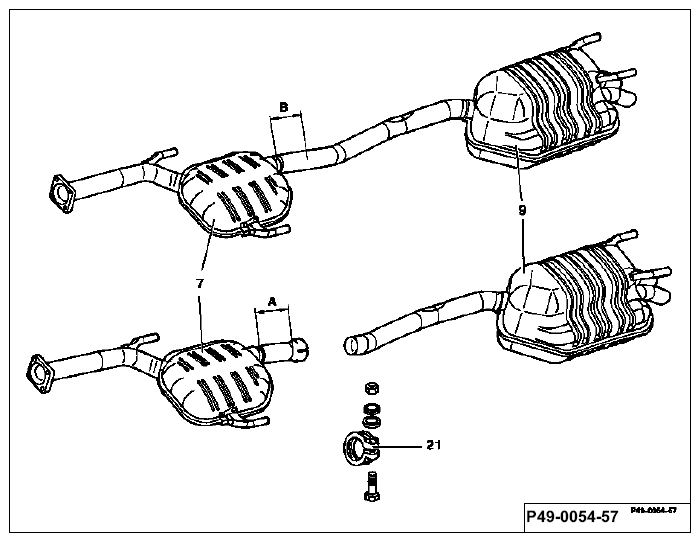

Fig 1: Identifying Tail Silencers And Pipe Clip

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Exhaust pipes between center and tail silencers (7, 9)	mark at point indicated and cut off. Size "A"=100 mm
Cut-off center silencer (7) and new tail silencer (9)	fit together, install pipe clips (21). When attaching the exhaust system, ensure that the projection "a" of the bracket at the tail silencer is not more than 3 - 5 mm at the rubber bush (18) when the exhaust is cold.

Fig 2: Identifying Tail Silencer Bracket Projection

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Renewing center silencer

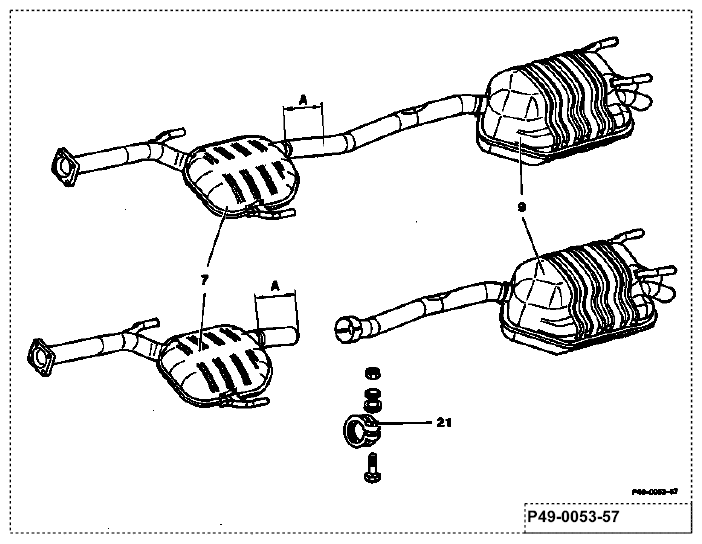

Fig 3: Identifying Tail Silencers And Pipe Clip

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Exhaust pipes between center and
tail silencers (7, 9)	mark at point indicated and cut off. Size "B"=115 mm NOTE: If the tail silencer (9) has already been replaced, the widened pipe end at the center silencer (7) should always be cut off (size "A"=100 mm).
Sawn-off tail silencer (9) and new center silencer (7)	fit together, install pipe clips (21). When suspending exhaust system, ensure that the projection "a" of the bracket at the tail silencer is not more than 3 - 5 mm at the rubber bush (18) when exhaust is cold.

Fig 4: Identifying Tail Silencer Bracket Projection
