Lubricate engine throttle linkage contr. shafts; check function/condition - wh3022pkw0000x(3022)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

All engines Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85

Revision: Engines 104, 111 with HFM, PMS added.

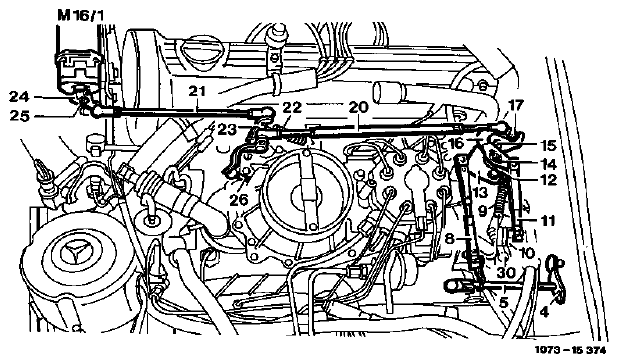

Fig 1: Identifying Engine Throttle Linkage Control Shafts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on engine 104

Air cleaner	remove, install (RI 09-0015 or 09-0400).
Oil	all bearing points for all control shafts, control levers, control shaft joints and control cables, oil, check for easy operation and wear. NOTE: For engine oil see Specifications for Service Products sheet 226.0-228.3. On version vehicles use only transmission oils according to Specifications for Service Products sheet 236.6, 236.7, 236.9.

Engines with diesel injection system

Fig 2: Identifying Diesel Injection System - Manual Transmission

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 601, 602, 603 with manual transmission

Fig 3: Identifying Diesel Injection System - Automatic Transmission

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 601, 602, 603 with automatic transmission

Do not lubricate friction damper (arrow).

Fig 4: Locating Lubricate Friction Damper

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 601, 602, 603 with manual transmission.

Arrangement with support and friction damper.

Fig 5: Identifying Diesel Injection System - Automatic Transmission (Model 124)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 124 engine 603.96 as of 1987

Fig 6: Identifying Diesel Injection System - Automatic Transmission (Model 126)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 126 engine 603.961 as of 1986 First version.

Fig 7: Locating Lubricating Point

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 126, engine 603.961 as of 1986

2nd version Engine 603.970 as of 1990

Model 140, engine 603.971 as of 1992

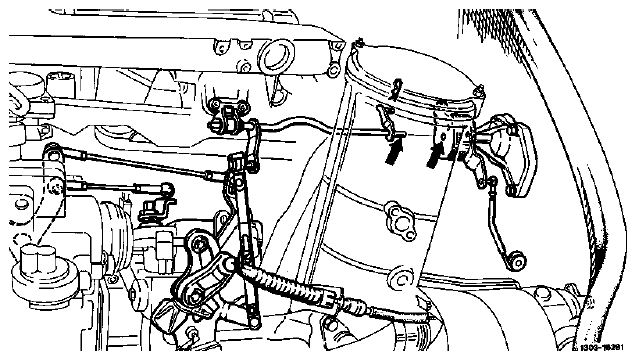

Fig 8: Identifying Friction Damper - Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Do not lubricate bearing point marked with arrows.

Fig 9: Identifying Friction Damper

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 615, 616, 617 except 616.912 39 as of 1982

Fig 10: Identifying Friction Damper - Manual Transmission

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 616.912 as of 1982 with manual transmission

Fig 11: Identifying Friction Damper - Automatic Transmission

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 616.912 as of 1982 with automatic transmission

Engines with carburetor

Fig 12: Identifying Stromberg Carburetor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 102.920/939 with Stromberg carburetor

Fig 13: Identifying Stromberg Carburetor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 102.921/924/938 with Stromberg carburetor

Fig 14: Identifying E-E Carburetor - Engine 102

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 102.922/924 with 2 E-E carburetor

Fig 15: Identifying E-E Carburetor - Engines 110

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 110

Engines with CIS/CIS-E gasoline injection systems

Fig 16: Identifying CIS Injection System - Engine 102

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 102.980 with CIS injection system

Fig 17: Identifying CIS Injection System - Engine 110

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 110 with CIS injection system

Fig 18: Identifying CIS-E Injection System - Engine 102.96

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 102.96/98 with CIS-E injection system (except 102.983/99)

Fig 19: Identifying CIS-E Injection System - Engine 102.983

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 102.983/99 with CIS-E injection system.

Fig 20: Identifying CIS-E Injection System - Engine 103

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 103

Fig 21: Identifying CIS-E Injection System - Engine 104

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 104 with CIS-E injection system

Fig 22: Identifying IS-E Injection System And ASR - Engines 103

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 103, 104 with CIS-E injection system and ASR

Fig 23: Identifying IS-E Injection System - Engines 116

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 116, 117 without ASR

Fig 24: Identifying CIS-E Injection System With ASR

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engines 116, 117 with ASR

Fig 25: Identifying CIS-E Gasoline Injection System And Tempomat/Cruise Control

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119 with CIS-E gasoline injection system and Tempomat/cruise control

Fig 26: Identifying CIS-E Gasoline Injection System And ASR

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119 with CIS-E gasoline injection system and ASR

Engines with LH gasoline injection system

Fig 27: Identifying LH Gasoline Injection System - Engine 104

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 104

Fig 28: Identifying LH Gasoline Injection System (Without Slotted Lever) - Engine 119

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119 without slotted lever

Fig 29: Identifying LH Gasoline Injection System (Without Slotted Lever) - Engine 119

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119 with slotted lever

Fig 30: Identifying LH Gasoline Injection System - Engine 120

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 120

Engines with gasoline injection and HFM/PMS ignition systems

Fig 31: Identifying Engine Throttle Linkage Control Shafts - Engine 104

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 104

Fig 32: Identifying Engine Throttle Linkage Control Shafts - Engine 111

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 111
