Function Diagram of Fuel Evaporation Control System - RA4700HFM0030X(47-0030)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

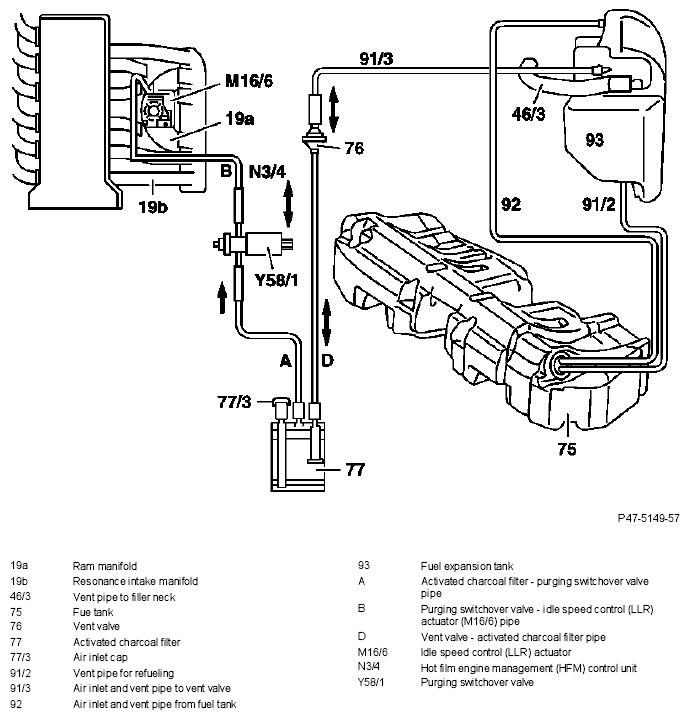

A Engine 104 HFM, models 124, 129, 140 without ski bag
Fig 1: Function Diagram Of Fuel Evaporation Control System (Engine 104 HFM, Model 140 Without Ski Bag)
Shown on engine 124

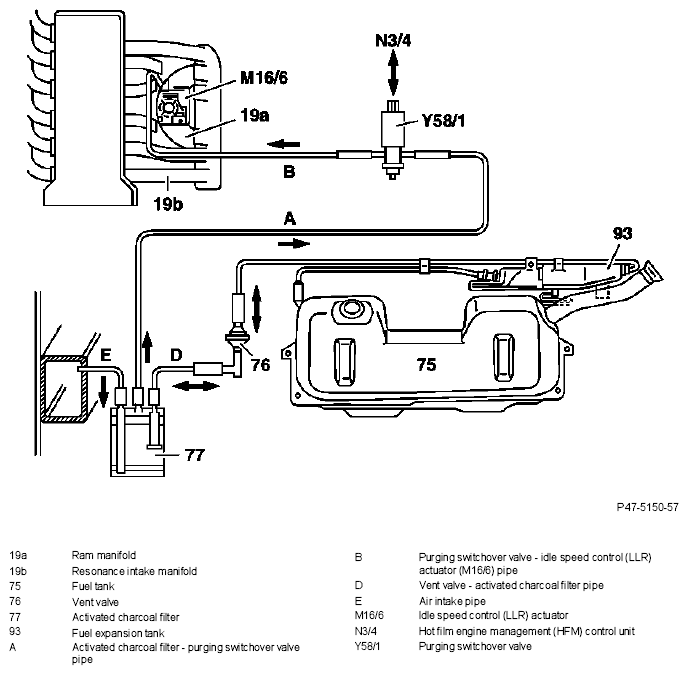

Model 140 with ski bag

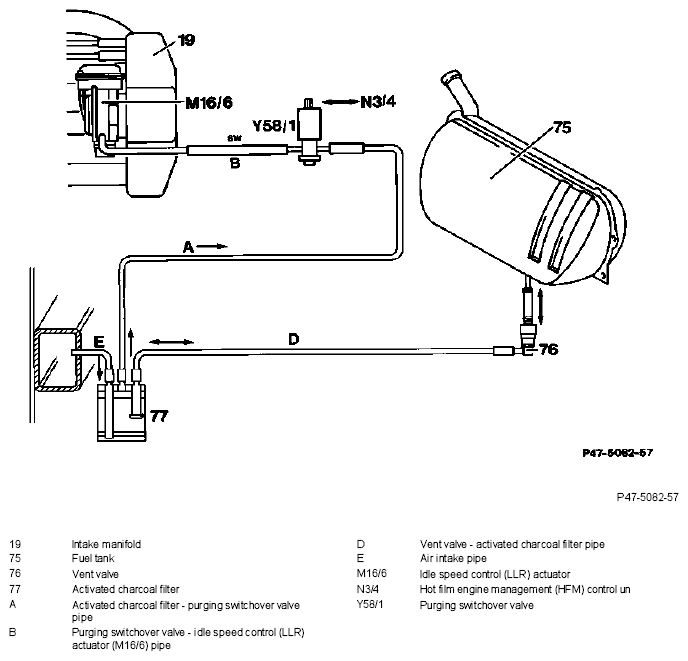

Model 202

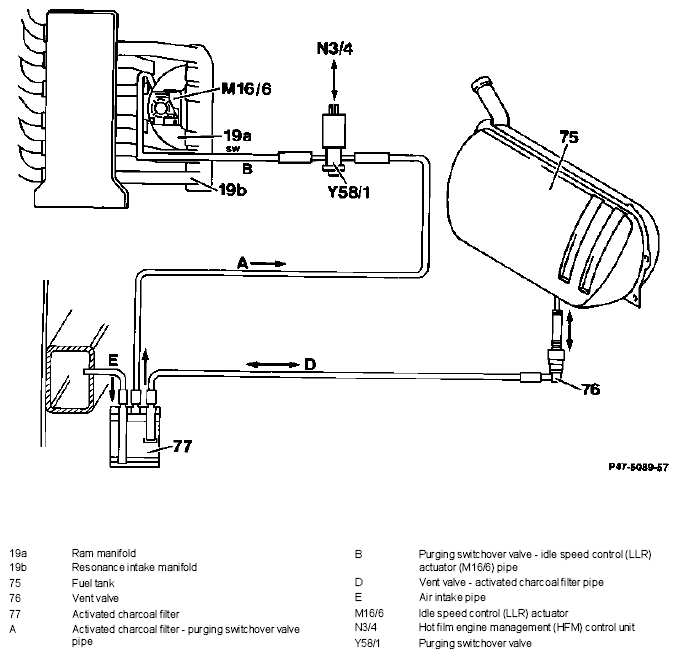

B Engine 111 HFM, model 124

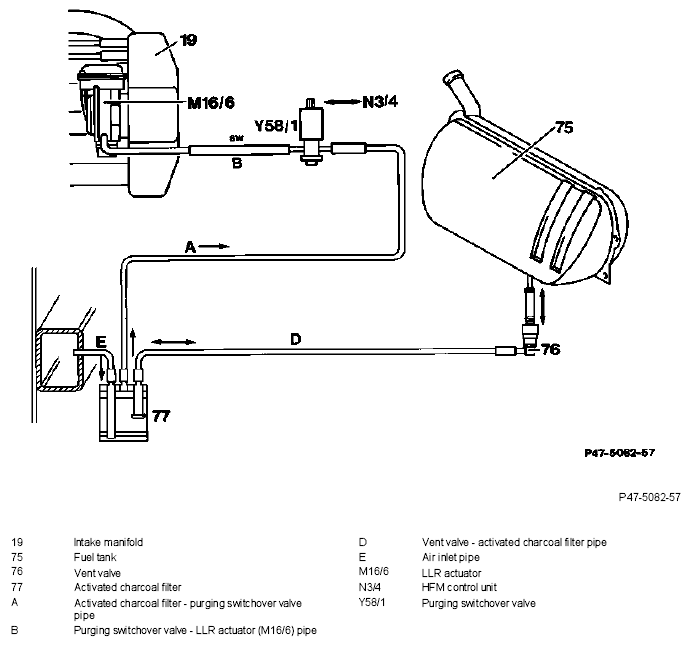

Model 202
C Engine 111 PMS, model 124

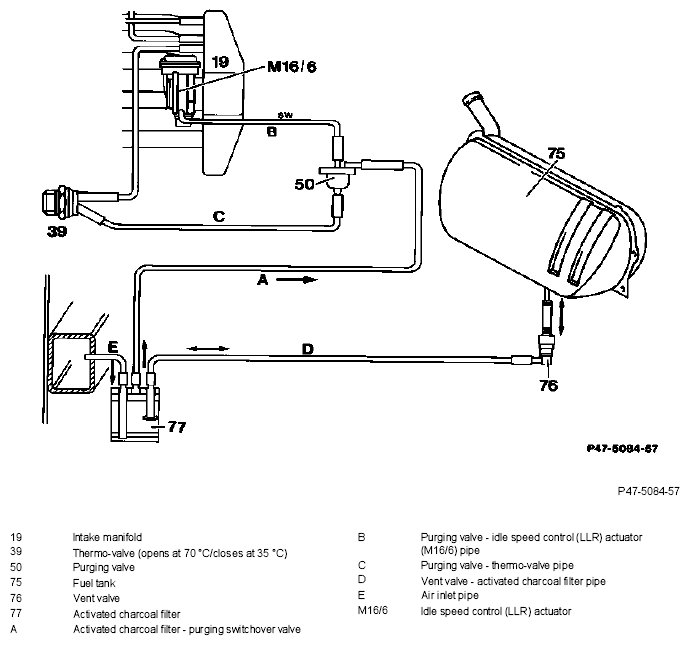

Fig 6: Function Diagram Of Fuel Evaporation Control System (Engine 111 PMS, Model 124) - 1st Version
1st version
NOTE:
The thermo-valve (39) and the purging valve (50) are replaced by the purging switchover valve (58/1) as a phased-in measure (see 2nd version).
Fig 7: Function Diagram Of Fuel Evaporation Control System (Engine 111 PMS, Model 124) - 2nd Version
2nd version
Model 202

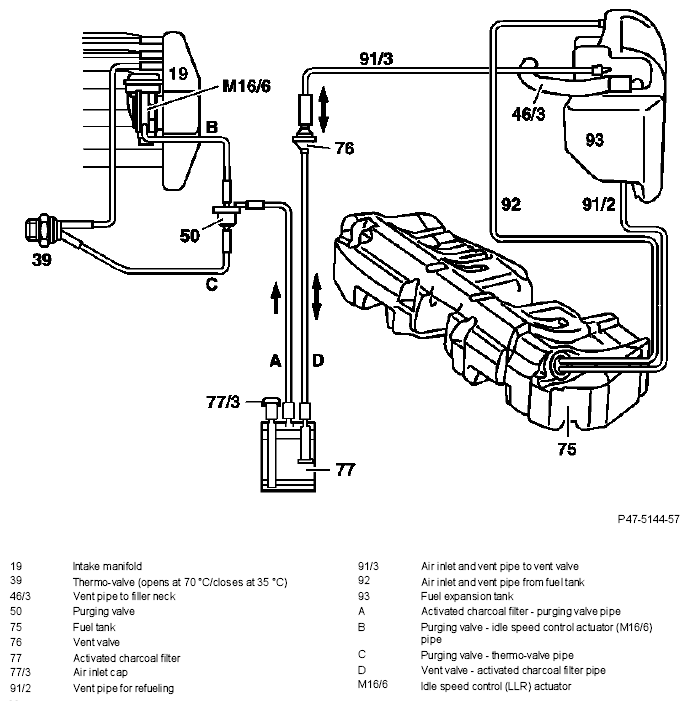

Fig 8: Function Diagram Of Fuel Evaporation Control System (Engine 111 PMS, Model 202) - 1st Version
1st version
NOTE:
The thermo-valve (39) and the purging valve (50) are replaced by the purging switchover valve (58/1) as a phased-in measure (see 2nd version).

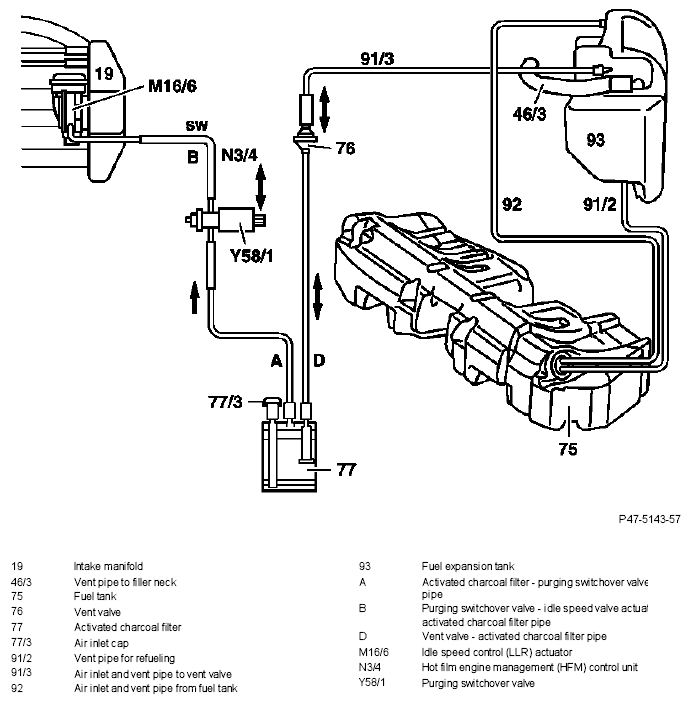

Fig 9: Function Diagram Of Fuel Evaporation Control System (Engine 111 PMS, Model 202) - 2nd Version
2nd version
