Removing and installing tensioning device - RA13001203450X(13-3450)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Viscous fan clutch removed (20-3120) .
Operation no. of the operation texts and work units or standard texts and flat rates
13-3200

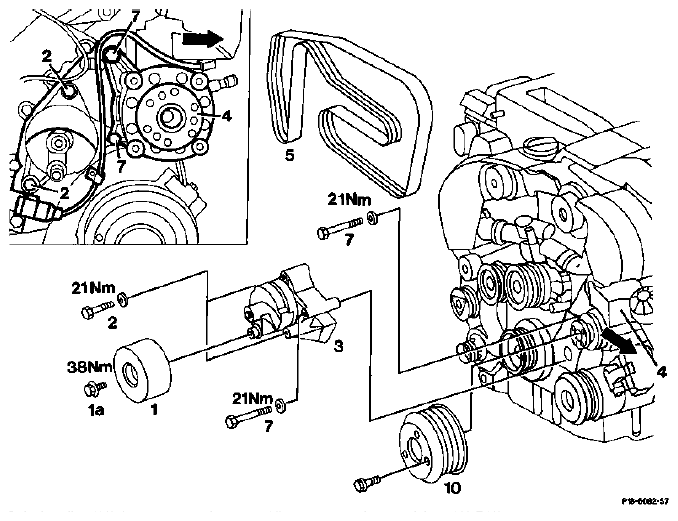

| Bolts in pulley (10) for power steering pump (4) | loosen, tighten. |
| Poly-V belt (5) | remove, install (13-3420) . |
| Pulley (1) of tensioning device (3) | remove, install. |
INSTALLATION NOTE
| Bolt (1a) | tighten to 38 Nm with torque wrench 001 589 72 21 00. |
| Pulley (10) for power steering pump (4) | remove, install). |
| Bolts (2) M8 X 60 and bolts (7) M8 X 110 | unscrew, screw in (21 Nm). |
| Power steering pump (4) | press outward in direction of arrow. |
| Tensioning device (3) | remove toward front, install. |
