Poly V-belts, running diagrams, dimensions - RA13001193440X(13-3440)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engine 119.960, model 129.066

Running diagram with air pump

Belt length 2523 mm 6 grooves

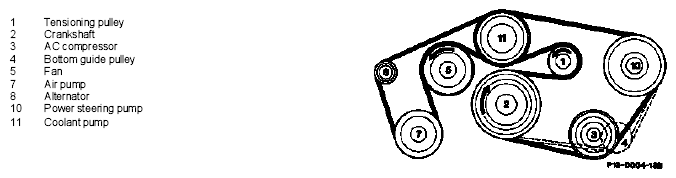

Fig 1: Poly V-Belts, Running Diagrams - With Air Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.960, model 129.066

Running diagram without air pump

Belt length 2176 mm 6 grooves

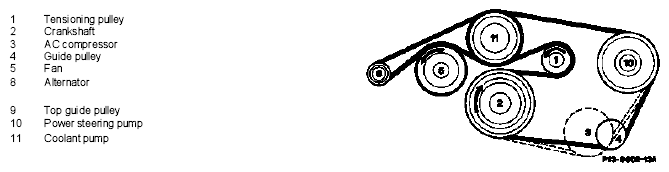

Fig 2: Poly V-Belts, Running Diagrams - Without Air Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.960, model 129.066

Running diagram without air pump with 2nd alternator

Belt length 2449 mm 6 grooves

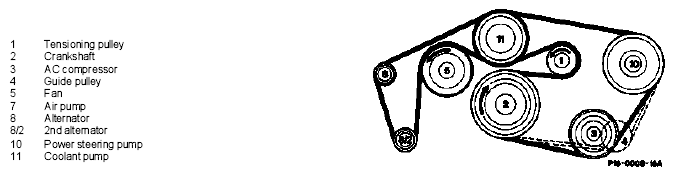

Fig 3: Poly V-Belts, Running Diagrams - Without Air Pump With 2Nd Alternator

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.970 Model 140.050/051

119.971 Model 140.042/043

119.974 Model 124.036

119.975 Model 124.034

Running diagram with air pump

Belt length 2460¹⁾ mm 8 grooves

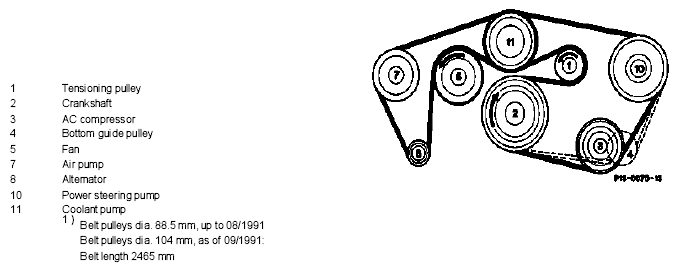

Fig 4: Poly V-Belts, Running Diagrams - With Air Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.970 Model 140.050/051

119.971 Model 140.042/043

119.974 Model 124.036

119.975 Model 124.034

Running diagram without air pump

Belt length 2460 mm 8 grooves

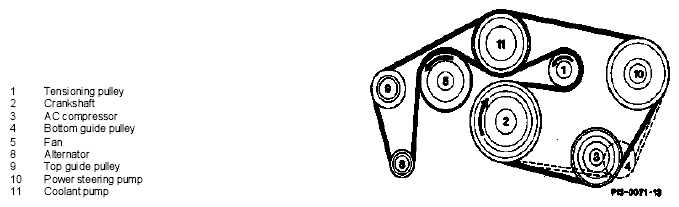

Fig 5: Poly V-Belts, Running Diagrams - Without Air Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.970 Model 140.050/051/070

119.971 Model 140.042/043/063

119.972 Model 129.067

119.974 Model 124.036

119.975 Model 124.034

Running diagram with air pump

Belt length 2535 mm 6 grooves

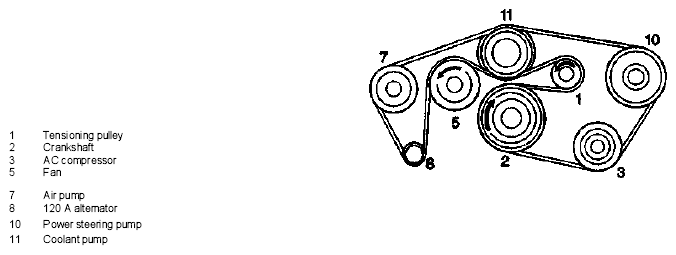

Fig 6: Poly V-Belts, Running Diagrams - With Air Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.970 Model 140.050/051

119.971 Model 140.042/043

Running diagram without air pump with 2nd alternator

Belt length 2465 mm 8 grooves

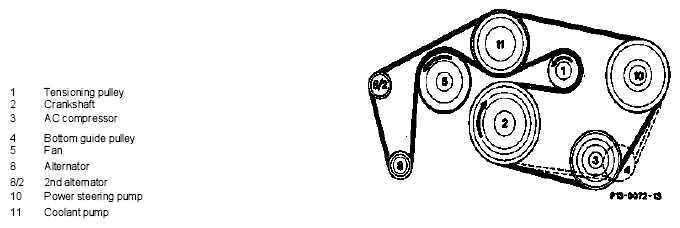

Fig 7: Poly V-Belts, Running Diagrams - Without Air Pump With 2Nd Alternator

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119.980 Model 140.050/051/070

119.981 Model 140.042/043/063

119.982 Model 129.067

119.985 Model 210.072/272

Belt length without A/C compressor 2425 mm 6 grooves

Belt length with A/C compressor 2510 mm 6 grooves

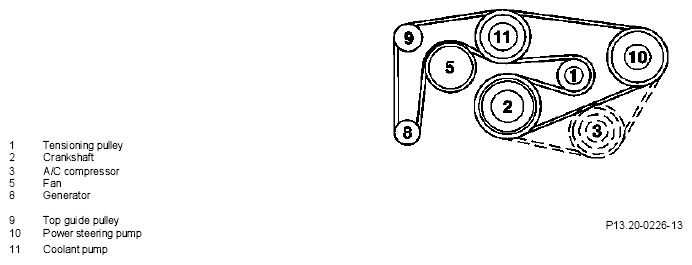

Fig 8: Poly V-Belts, Running Diagrams - Without A/C Compressor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
