Poly V-belt, running diagrams, dimensions - RA13001041240X(13-1240)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Running diagrams

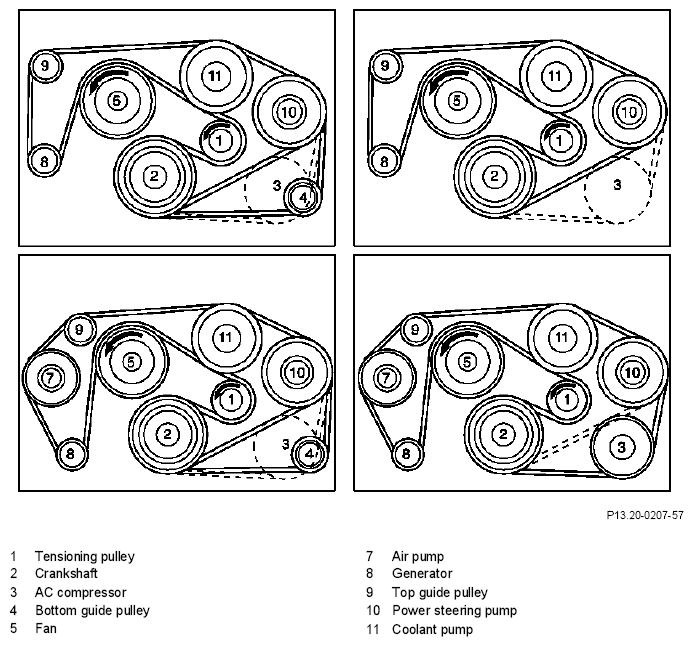

Fig 1: Poly V-Belt, Running Diagrams

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 104

Model

Remarks

Optional equipment 12.457⁽¹⁾

Optional equipment 12.458 ⁽²⁾

Air pump drive

Belt length with tensioning pulley Ø 92 mm

80 mm

941

202.028

up to -0-004058

mech./none

2080

up to -2-034966

as of -0-004059 ⁽³⁾

electric

2130

2100

as of -2-034967

up to-0-004058

/18

mech./none

2176

up to-2-034966

as of-0-004059 ⁽³⁾

/18

2225

2205

as of-2-034967 ⁽³⁾

as of -0-006124 ⁽⁴⁾

/18

electric

2140

2120

as of-2-063790 ⁽⁴⁾

electric

2140

2120

as of-2-063790 ⁽⁴⁾

electric

2140

2120

as of -0-006124 ⁽⁴⁾

/18

electric

2245

2225

as of-2-063790 ⁽⁴⁾

2240

942

124.0..

up to -0-005789

mech./none

2330

up to -2-048686

as of -0-005790 ⁽³⁾

/39

mech./none

2380

2360

as of -2-048687 ⁽³⁾

up to -0-005789

/16

mech./none

2415

up to -2-048686

as of -0-005790 ⁽³⁾

/16

mech./none

2475

2445

as of -2-048687 ⁽³⁾

943

129.058

as of -0-000901 ⁽³⁾

/21

electric

2225

2205

as of -2-003621 ⁽³⁾

944

140.028

up to -0-000740

2445

up to -2-000447

as of -0-000741 ⁽³⁾

32/36

electric

2225

2205

as of -2-007448 ⁽³⁾

as of -0-000741 ⁽³⁾

none

2225

2205

as of -2-007448 ⁽³⁾

945

210.053

as of start of production

2120

as of start of production

with

2225

⁽¹⁾	= air conditioning

⁽²⁾	= exhaust gas recirculation

⁽³⁾	= production breakpoint of belt tensioner with self-damping as of 09/1994, was rubber element prior to this date

⁽⁴⁾	= production breakpoint of VDA power steering pump as of 09/1995, was VT67 prior to this date

Engine 104.

Model

Remarks

Optional equipment 12.457 ⁽¹⁾

Optional equipment 12.458 ⁽²⁾

Air pump drive

Belt length with tensioning pulley Ø 92 mm

80 mm

980

124.0..

up to -0-009076

with/none

2285

up to -2-042810

as of -0-009077

with

2275

as of -2-042811

as of -0-009077

2176

as of -2-042811

up to -0-004956

with/none

2445

up to -2-021004

as of -0-004957

with

mech./none

2445

as of -2-021005

up to -0-009076

with

mech./none

2445

up to -2-042810

as of -0-009077

with

mech./none

2415

as of -2-042811

as of -0-004957

mech./none

2355

as of -2-021005

up to -0-009076

mech./none

2355

up to -2-042810

as of -0-009077

mech./none

2330

as of -2-042811

990

140.032

8 grooves

2337

8 grooves

2440

991

129.063

up to -2-009985

2330

as of -2-009986

2130

up to -2-009985

/21

2415

as of -2-009986 ⁽³⁾

/21

2225

2205

as of -2-009986 ⁽³⁾

/30

2475

2445

as of -2-009986 ⁽³⁾

/42

mech./none

2380

2360

⁽¹⁾	= air conditioning

⁽²⁾	= exhaust gas recirculation

⁽³⁾	= production breakpoint of belt tensioner with self-damping as of 09/1994, was rubber element prior to this date

Engine 104.

Model

Remarks

Optional equipment 12.457 ⁽¹⁾

Optional equipment 12.458 ⁽²⁾

Air pump drive

Belt length with tensioning pulley Ø 92mm

80mm

992

124.0..

up to -1-004356

2330

up to -2-072236

as of -1-004357 ⁽³⁾

electric

2130

as of -2-072237 ⁽³⁾

2445

as of -1-004357 ⁽³⁾

mech./none

2380

as of -2-072237

2360

up to -1-004356

/16

2415

up to -2-072236

as of -1-004357

/16

2475

as of -2-072237

2445

994

140.032/033

up to -2-031209

2445

as of -2-031210 ⁽³⁾

electric

2225

2205

as of -2-031210 ⁽³⁾

/32/36

mech./none

2475

2445

995

210.055

as of start of production

electric

2140

2120

as of start of production

with

electric

2240

2225

996

463.2

as of start of production

2120

as of start of production

with

2380

⁽¹⁾	= air conditioning

⁽²⁾	= exhaust gas recirculation

⁽³⁾	= production breakpoint of belt tensioner with self-damping as of 09/1994, was rubber element prior to this date
