Removing and installing overflow tank - AR20.30-P-4540HX

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 603 in MODEL 140

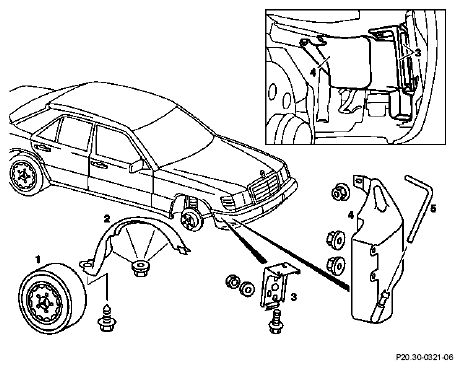

Fig 1: Identifying Overflow Tank Removal/Install Components - Engine 603 In Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Take off wheel (1)
2	Unbolt partition below front wheel housing liner (2)
3	Unbolt bracket for bumper (3) on right
4	Unbolt overflow tank (4)
5	Detach coolant hose (5)
6	Install in the reverse order
