Removing and installing engine coolant pump - AR20.10-P-1271AX

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601 in MODELS 124, 201, 202

ENGINE 602 in MODELS 124, 201

ENGINE 603 in MODELS 124, 126, 140

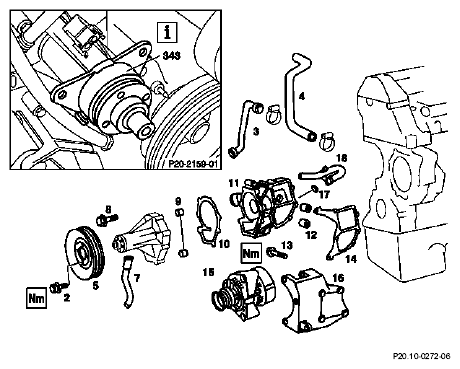

Fig 1: Identifying Engine Coolant Pump Removal/Install Components - Engine 601 In Models 124, 201, 202
G04715243Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

1.9.95 Coolant pump with increased volumetric flow Refer to step 15
REMOVINGINSTALLING Removing, installing
1 Drain coolant   ra20006010010x
2 Remove radiator Model 201.126 AR20.20-P-3865HW
3 Remove solenoid fan clutch Engines with solenoid fan clutch ra20006010335x
4 Remove viscous fan clutch Engine 601 in model 202 AR20.40-P-5660HA
    Engines 601, 602 in models 124, 201 AR20.40-P-5660HW
    Engine 603 in models 124, 126, 140
5 Disconnect ground cable from battery   AR54.10-P-0003A
6 Slacken bolts (2) of belt pulley of coolant pump. TORQUE SPECIFICATION *BA20.10-P-1001-01A
    SPECIAL TOOL Fig 2
7 Remove poly V-belt   AR13.22-P-1202HW
8 Unbolt belt pulley (5) IMPORTANT Do not remove solenoid carrier (34) on engines with solenoid fan clutch. Stick loose solenoid carriers in place with adhesive. *BR00.45-Z-1010-02A
9 Disconnect coolant hose (3) and heating water hose (4) from coolant pump housing.
10 Remove generator (15)
11 Remove generator carrier (16). TORQUE SPECIFICATION *BA15.40-P-1005-01E
12 Remove coolant pump housing (1) together with coolant pump IMPORTANT When removing the coolant pump housing, pull the housing off the heater return line (18).
    IMPORTANTInstallation:  Moisten seal (17) with coolant. Do not use oil.
    TORQUE SPECIFICATION *BA20.10-P-1003-01A
13 Replace gasket (14). Clean sealing surfaces.
14 Unscrew coolant pump (6) IMPORTANT As of 11/1995, a coolant pump with increased volumetric flow is installed with engine 603.960/971.
Refer to ↓		 *BA20.10-P-1002-01A
REFER TO COMPONENT MODIFICATIONS   Coolant pump with increased volumetric flow BT20.10-P-0001-01A
15 Replace gasket (10). Clean sealing surfaces.
16 Install in the reverse order
17 Test cooling system for leaks   AR20.00-P-1010HA
TORQUE SPECIFICATION COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engines 601, 602 except 602.98, 603
BA20.10-P-1001-01A Bolt, pulley to coolant pump Nm 15
BA20.10-P-1002-01A Bolt, coolant pump to coolant pump housing Nm 10
BA20.10-P-1003-01A Bolt, coolant pump housing to crankcase Nm 10
TORQUE SPECIFICATION GENERATOR

Number Designation Engine 601 Engine 602 Engine 603
BA15.40-P-1005-01E Bolt, generator carrier to crankcase M8 Nm 25 25 25
M10 Nm 45 45 45
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-02A Adhesives A 003 989 32 71 10
Fig 2: Identifying Counter holder (603 589 00 40 00)
G04715244Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
