Removing and installing radiator - ra200c1044200x (4200-C)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 in Model 140
C. Model 140
Operation no. of operation texts and work units or standard texts and flat rates:
20-3865-4535

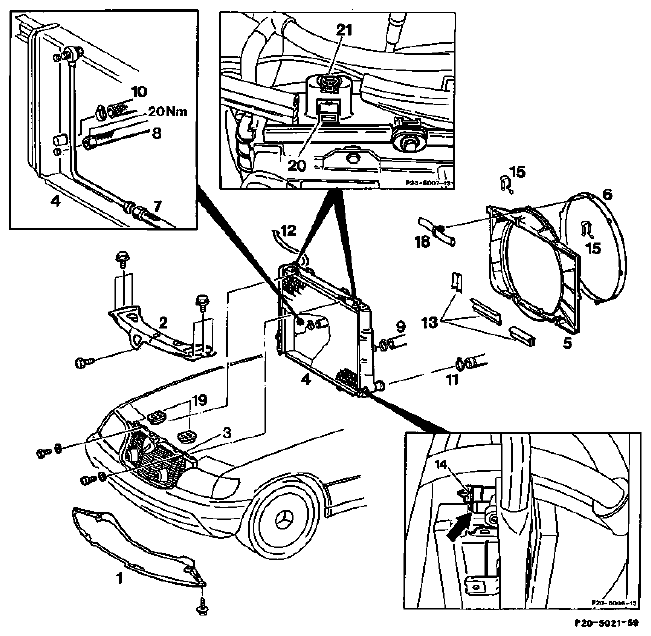

| Fan shroud (5) | remove (20-3400) . |
| Coolant at radiator (4) | drain Draining, pouring in coolant - anti-freeze protection table . |
| Coolant hoses (9), (10), (11) and (12) | take off, fit on. |
| If automatic transmission fitted: | unbolt oil pipes (7) and (8) at radiator (4), bolt on (20 Nm). |
| Air scoop | remove, install. |
| Plastic strips (13) at radiator (4) | pull off, fit on. |
| Bowden cable of hood lock at radiator (4) | detach, attach. |
| If AC fitted: | unbolt radiator (4) at condenser (3), bolt on. |
| Radiator (4) | remove upward, install. |
|
NOTE:
The securing studs of the radiator must be inserted into the rubber pads (19) of the bottom cross member.
|
|
| Fan shroud (5) | install (20-3400) . |
| Upper frame cross member (2) | bolt on. |
|
NOTE:
If new radiator (4) fitted, adjust positioning bar (20) with adjusting screw (21) by hand. To do this, turn adjusting screw (21) with upper frame cross member (2) installed until adjusting bar (20) is resting slightly pretensioned against the upper frame cross member (2).
|
|
| Cooling system | fill Draining, pouring in coolant - anti-freeze protection table . |
| If automatic transmission fitted: | check oil level, adjust to correct level. |
| Cooling system | check for leaks Testing cooling system for leaks . |
TIGHTENING TORQUES IN Nm
| Hose of automatic transmission fluid to radiator (union nut) | 20 |
| Hose clips (reference value) | 2.5 |
| Drain plug of radiator (reference value) | 1.5 |
COMMERCIALLY AVAILABLE TOOL
| 7 mm wrench socket hexagon on flexible shaft for hose clip with worm drive | e. g. Hazet 42853 Remscheid Order no. 426-7 |
