Removing and installing expansion reservoir - RA200B1044500X(20-4500)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

B. Models 129, 140

Warning instructions when hood open (01-0085) .

Operation no. of operation texts and work units or standard texts and flat rates:

20-4950

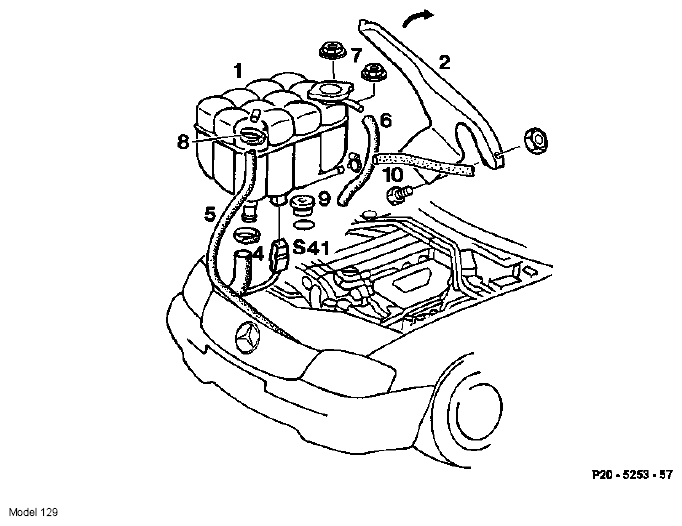

Fig 1: Identifying Expansion Reservoir Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cap of expansion reservoir (1)	open, release pressure Draining, pouring in coolant - anti-freeze protection table .
Coolant	drain (until expansion reservoir is empty), pour in Draining, pouring in coolant - anti-freeze protection table .
Model 129:	unbolt cover (2), raise, install.
Plug of connector (S41) of coolant level indicator	remove, insert.
Coolant hoses (4), (5)	detach, fit on.
Model 129:	detach coolant hose (6) to overflow tank, install.
Model 129:	take off vent line (10) (if fitted), fit on; see note.
Nuts (7)	unscrew, screw on.
Expansion reservoir (1)	remove, install. Pay attention to rubber mount (9) of expansion reservoir (1).
Note re model 129 As of vehicle ident end no. 001 950 an expansion reservoir with the identification 129 500 03 49 (previously 129 500 01 49) on the top of the reservoir has been installed. This reservoir has a modified vent connection which improves the venting of the cooling system.	When performing repairs, install this reservoir. As of vehicle ident end no. 022 921 an expansion reservoir with a vent line to the heating system has been installed.
