Removal and installation of the thermostat - ra20006010110x(0110)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 601, 602 (except 602.98), 603
Preceding work:
Coolant drained (Draining, pouring in coolant - anti-freeze protection table ).
Operation no. of operation texts and operation values or standard texts and flat rates; 20-2462

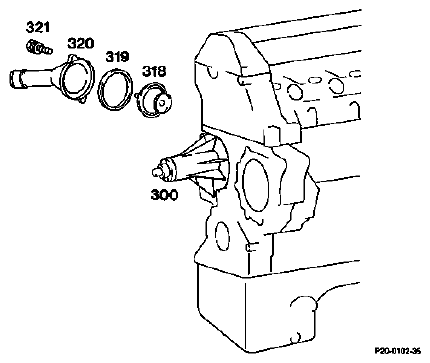

| Housing cover (320) | unscrew from coolant pump, screw on, bolts (321), 10 Nm. Renew seal (319). |
| Thermostat (318) | check. Pay attention to installation position; the recess on the thermostat must be aligned with the rib in the thermostat housing cover. |
|
NOTE:
Thermostat and thermostat housing cover are marked with a green dot on turbo engines.
|
Special tool
