Removal and installation of the magnetic fan coupling - ra20006010335x(0335)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 601
Preceding work:
Poly V-belt removed (13-342).
Operation no. of operation texts and operation values or standard texts and flat rates 20-6602

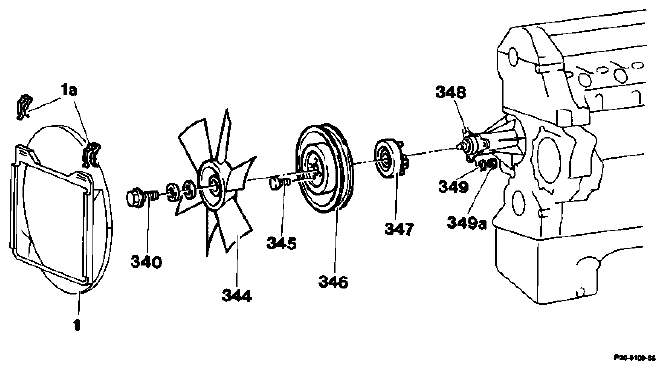

| Retaining clips (1a) | pull off, fit on. |
| Fan cowl (1) | detach, attach, place over fan. |
| Fan (344) | unscrew, screw on, 25 Nm. |
| Belt pulley (346) | unscrew, screw on, hexagon socket screw 10 Nm or torx screw 14 Nm. |
| Magnet body (347) | pull off cable connection, fit on, unscrew nuts (349a), screw on. |
| Magnet carrier (348) | do not pull off from coolant pump, check whether tight, secure with adhesive 001 989 45 20 10, if necessary. |
Special tools
