Cleaning the air cleaner element, with perforated plate - wh0932pkw0000x(0932)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

All engines - Only in countries with high dust deposits Models 107 from 8/85, 123, 124, 126 from 9/85, 129, 140 to 6/93, 201 from 1/85

NOTE: Under extreme operating conditions such as poor road conditions, high dust deposits, air cleaner elements reinforced with perforated plate should be cleaned during each maintenance service or when the red field appears in the observation window (1) on the maintenance indicator.

Do not attempt to clean air cleaner elements without perforated plate, always replace such elements.

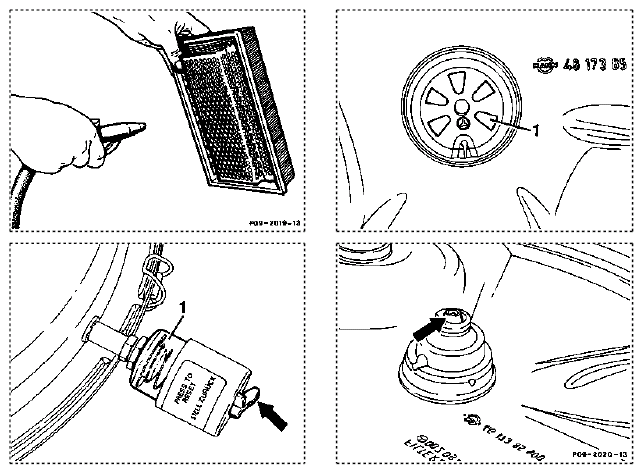

Fig 1: Identifying Air Cleaner Element

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Air cleaner element	remove, install.
Never blow directly into paper filter pockets without maintaining specified interval, because otherwise the glued joints in the filter pockets can tear allowing unfiltered air to be sucked into the engine. Do not wash, beat out or oil air cleaner element. When installing ensure that rubber sealing element is positioned correctly.	Blow compressed air, max. 5 bar gauge pressure, through element from perforated plate reinforced side (clean air side); hold compressed air nozzle approx. 20 cm away from perforated plate.
Air cleaner housing and cover	clean.
Sealing compound on air cleaner element	check. If sealing compound is cracked, replace filter element.
Gasket on air cleaner cover On air cleaner with maintenance indicator	check for damage, replace, if required. reset red indicator field by pressing lock (arrow).
