Removal and Installation of Air Cleaner C - ra090c6021051x(1051)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 603.97 in Model 140
Operation no. of operation texts and work units or standard texts and flat rates: 09-1051

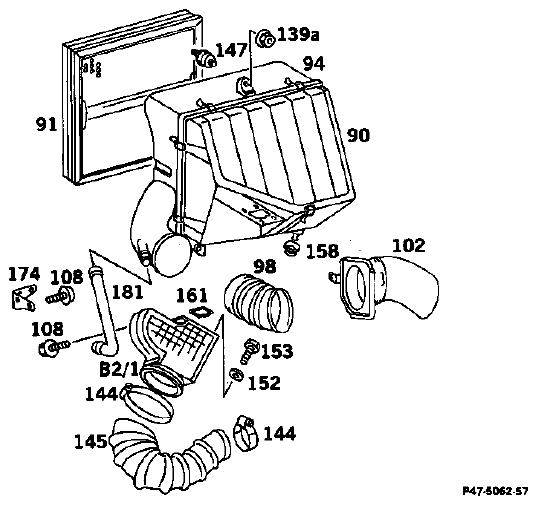

C. Model 140
| Air cleaner element (91) | remove, install. |
| Hose strap (144) | slacken, tighten. |
| Intake pipe air line (145) | remove, install. |
| Air flow sensor connector | unplug, plug in. |
| Air cleaner cover (90) | remove, install. |
| Air flow sensor (B2/1) | remove, install. |
| Seal (161) | replace according to condition. |
| Nut (139a) | unscrew, screw on. |
| Intake line (98) | take off, fit on. |
| Intake scoop (102) | remove, install. |
| Bracket (174) | unscrew, screw on. |
| Air guide housing (94) | remove, install. Ensure correctly seated. |
| Buffer (147) | replace according to condition. |
| Drain hose (181) | take off, fit on. |
