SERVICE sheet for Flexible Service System (FSS) (USA) - AP00.20-U-1206B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

MY 1999

Passenger Cars MY 1999

Model 140

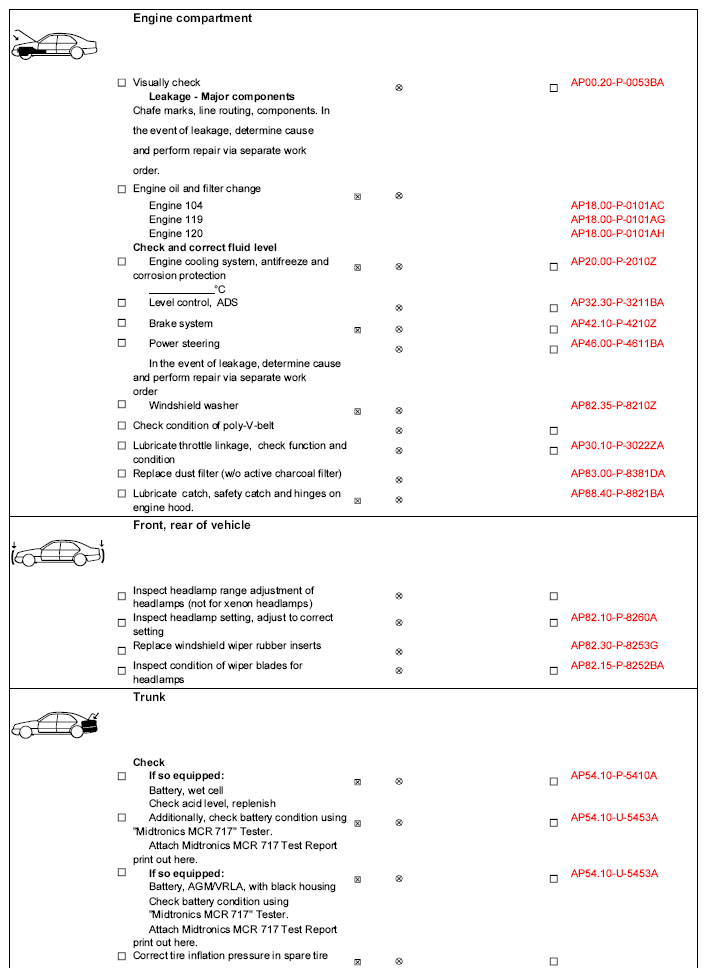

Fig 1: Flexible Service sheet - Passenger Cars (Model 140) (1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

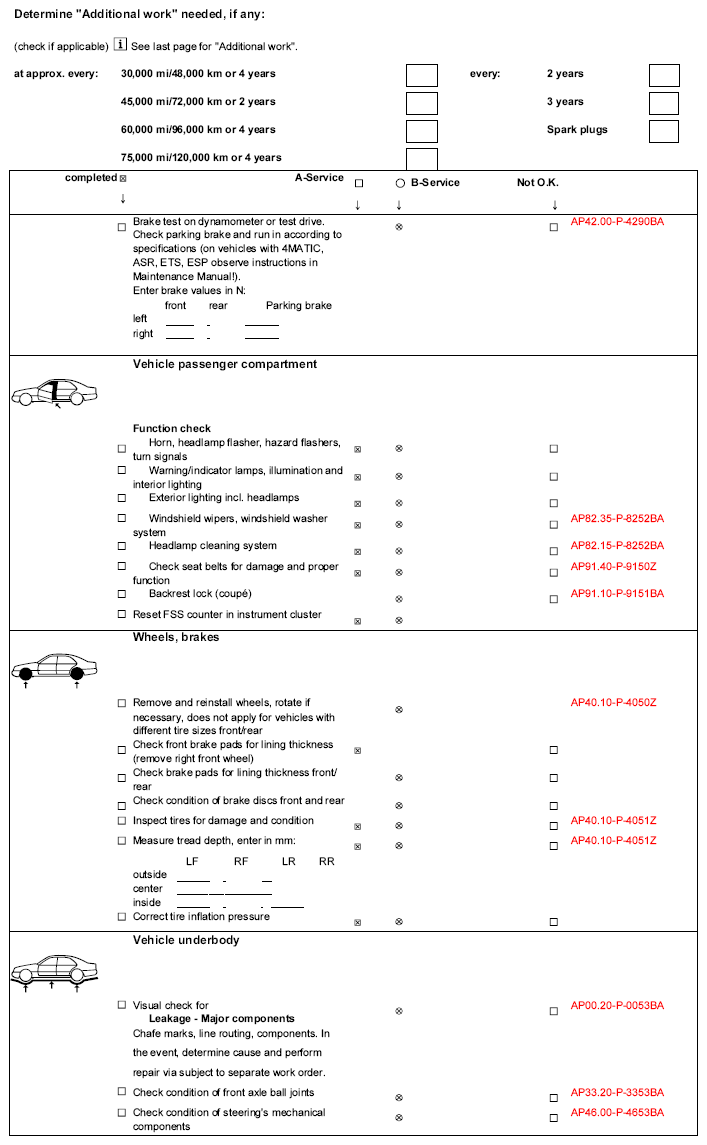

Fig 2: Flexible Service sheet - Passenger Cars (Model 140) (2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

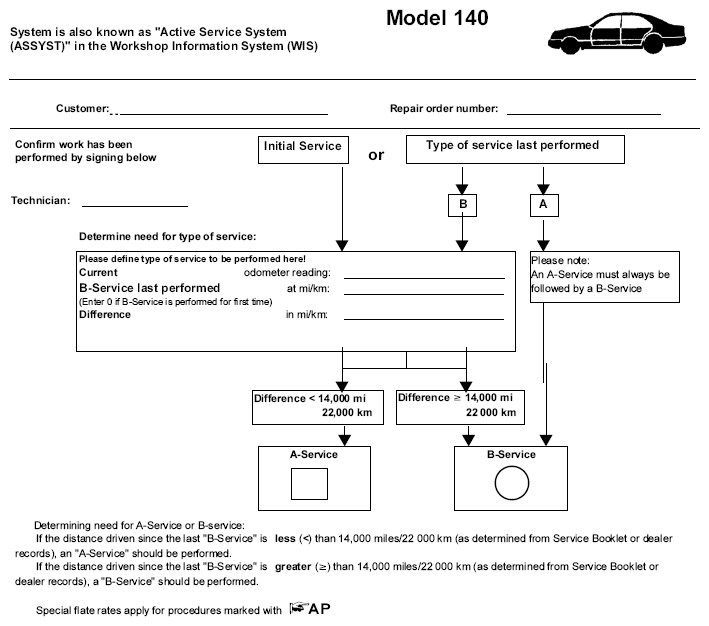

Fig 3: Flexible Service sheet - Passenger Cars (Model 140) (3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

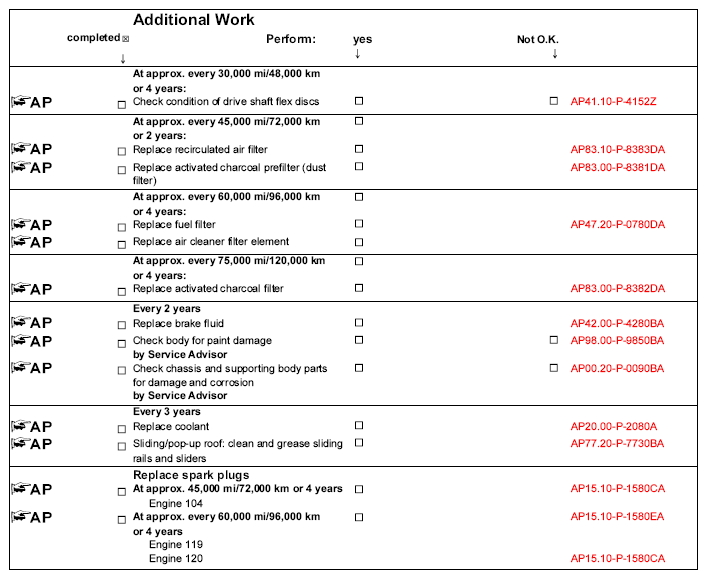

Fig 4: Flexible Service sheet - Passenger Cars (Model 140) (4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
