Remove/install end cap - ra01006010222x(0222)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engines 601, 602 (except 602.98), 603

Preceding work:

Transmission removed.

Flywheel removed.

Operation no. of the operation texts and work units or standard texts and flat rates

Fig 1: Identifying End Cap Removal And Installation Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

If the end cap is removed because of a leakage or if the leakage cannot be properly located, the leakage can be made visible by spraying with MB-Contrast-Spray 000 989 03 59 (see PR 0.10/1).

Hex. head bolts (55)	in oil pan, screw out, screw in, 25 Nm (step 1).
Hex. head bolts (21)	Hex. head bolts (21) in end cap (20), screw out, screw in, 10 Nm (step 2). NOTE: Coat threads of hex. head bolts with sealant 002 989 20 10.
End cap (20)	press out together with crankshaft radial seal (22), press in, installation sleeve 601 589 03 43 00 (step 3). Pay attention to oil pan gasket. Avoid damaging. NOTE: Clean gasket residues off of parting surface on end cap and coat parting surface of cap with sealant 002 989 00 20 10. Check crankshaft radial seal and remove if required, install, installation sleeve 601 589 03 43 00.

SEALANT

Omnifit

002 989 00 20 10

Tightening torques	Nm
Hex. head bolts, end cap	10
Hex. head bolts, oil pan	25

Special tools

Fig 2: Identifying Special Tools (601 589 03 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tools (001 589 72 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

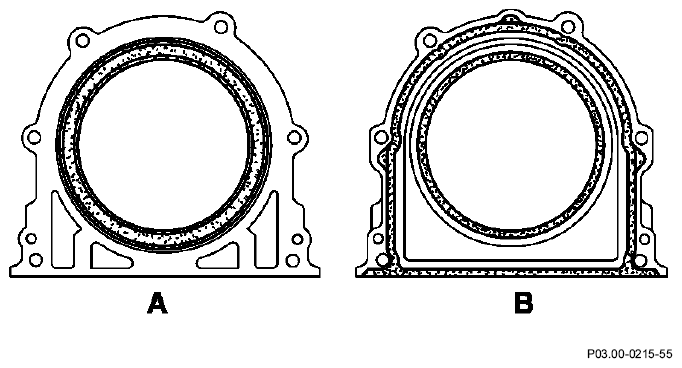

NOTE: Since 09/94 an end cover with integrated shaft seal (version B) has been installed on engines 601, 602, 603. End cover and shaft seal are a unit; the shaft seal is vulcanized in the cover.

When performing repairs, install the previous version of radial shaft seal and end cover.

Fig 4: Identifying Shaft Seal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal, installation

Screw out the two hex. head bolts (55) in the oil pan.
Installation note

Tightening torque 25 Nm.
Screw out hex. head bolts (21) in end cap (20).
Installation note

Coat threads on hex. head bolts with sealant 002 989 00 20 10.

Tightening torque 10 Nm.

Fig 5: Identifying Head Bolts In Oil Pan
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Press end cap off of crankcase at tabs (arrows) and remove crankshaft radial seal from crankshaft journal.
When pressing the end cap on and off pay attention to the oil pan gasket. Avoid damaging.

Fig 6: Locating Crankcase End Cap Tabs
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Installation note

Clean gasket residues off of parting surface on end cap. Check crankshaft radial seal and replace if required. Coat parting surface on end cap with sealant 002 989 00 20 10 and slide end cap together with radial seal over attached installation sleeve 601 589 03 43 00.

Fig 7: Identifying Installation Sleeve (601 589 03 43 00)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
