Cranking engine with starter - AR01.10-P-0110D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 606.961 in MODEL 140
| Removing, installing | |||
|---|---|---|---|

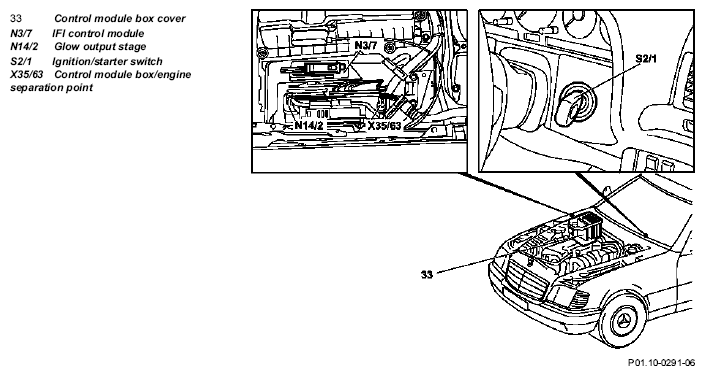

| 1 | Unbolt cover of control module box (33) | ||
| 2 | Separate connector at IFI control module (N3/7) | ||
| Risk of accident as a result of vehicle starting off when engine running. Risk of injury as a result of bruises and burns if you insert your hands into engine when it is being started or when it is running. | Secure vehicle to prevent it starting off. Wear closed and close-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 3 | Crank engine with ignition/starter switch (S2/1) | ||
| 4 | Install in the reverse order |
